Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Model Number: YX255
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$6000---10000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

0.4mm Color Steel Tile Roof Ridge Cap Roll Forming Machine Ce

Description
Name: Color Steel Roof Tile Ridge Cap/Roll Top Roll Forming Machine Main Power: 3kw
Speed: 4m/min Color: As Request
Material: 0.4mm
High Light:

0.4mm roof ridge cap roll forming machine

,

ce roof ridge cap roll forming machine

,

0.4mm top hat roll forming machine

Color Steel Roof Tile Ridge Cap/Roll Top Roll Forming Machine



Machine Specifications
1. Suitable to process: Color steel plate
2. Width of the plate: 400mm
3. Rollers: 11 rows
4. Dimensions: 5.4*1.15*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control



Description
This machine produce two models of roofing is the most popular model of roofing,its widely used in roofing and wall of the workshop.

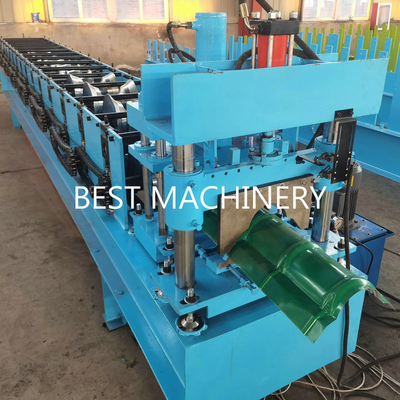

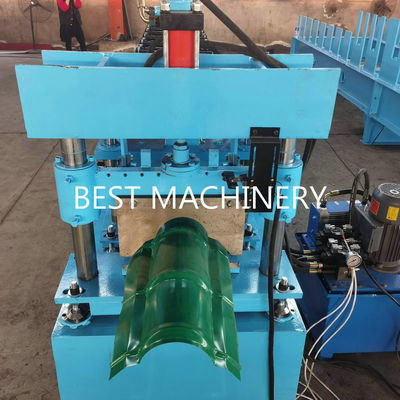

There is two cylindas on the cutting head of this machine,the hydraulic oil is running into the cylinda,control the cutter easily.


Specification

NO. ITEM PARAMETER NOTE
1.


Suitable
material
Type Pre-painted sheet,
Galvanized sheet

Width(mm) 500
Thickness(mm) 0.3-0.8mm
Yield stress(mm) G220-G300
2. Product
specifications
Detail as the attached file
Length Any length
3. Power
requirement
Type 380v/3ph/50hz Motor brand shanghai Lichao
Main Motor power 5.5kw
Cutter power 4kw
4. Forming speed(m/min) 2m/min Not include the time of cutting
5. Manual Decoiler

(Optional)
Type Manual
Max capacity 5t
Suitable coil OD(MM) 1250
Suitable coil
ID(MM)
508
6. Forming stand 15 Depend on actual design
7. Thickness of structure 16mm
8. Forming shaft diameter(mm) 70 solid
9. Type of cutting Roll formed and
length-set cutting

10. Control system Panasonic PLC and inverter
11. Install dimension(depend on the final design) 8.8m×1.5m×1.3m Without panel length
12. Total weight (Approx) 4.5T Depend on final design


Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
Products receiving

Applications:

Roof panel / wall panel are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,
shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and
different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers'
requests.This model is hot in Mexico.

Competitive Advantage:
1. save space
2. easy installation
3. perfect service
4. excellent quality
5. Operate easily
