Product Details:
|
| Name: | Boliva Popular Design Spanish Roof Tile Roll Forming Machine/Steel Glazed Tile Roll Forming Machine | Coil Width: | 1000mm |
|---|---|---|---|
| Coil Thickness: | 0.3-0.8mm | Main Power: | 3kw |
| Hydraulic Power: | 3kw | Speed: | 4-6m/min |
| High Light: | Roof Tile Roll Forming Machine 6m/min,Steel Glazed Tile Roll Forming Machine,Roof Tile Roll Forming Machine 4m/min |
||

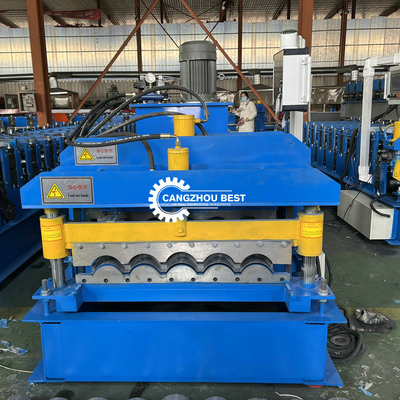

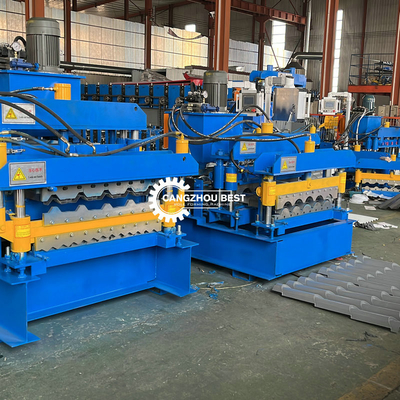

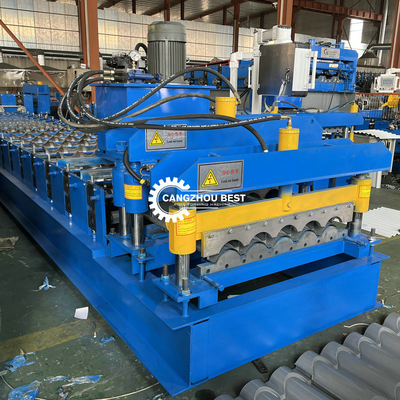

oliva Popular Design Spanish Roof Tile Roll Forming Machine/Steel Glazed Tile Roll Forming Machine

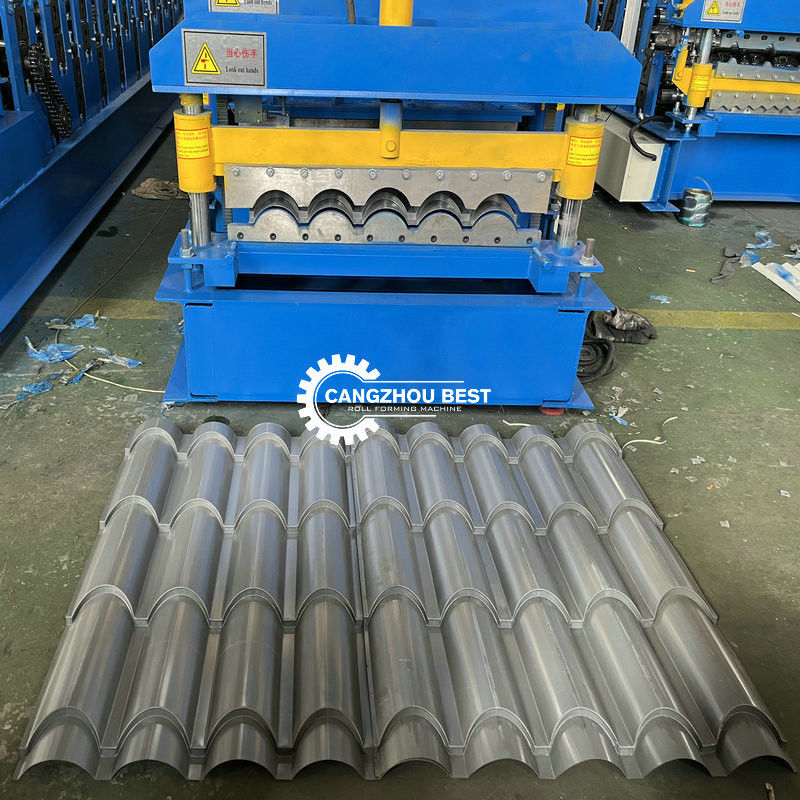

Different roof/wall panel cold rollformer can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements.This roman tile machine is very popular in Kenya,coil width is 1000mm, effective width is 935mm.Any color is okay.
Our factory is located in Cangzhou,China,we has been in this feild about 20years,my engineer has a lot of experience on roll forming machine and very professional on it.We produce all kind of roll forming machine,now the fasteset speed can reach 50m/min.
Our product:color steel roll forming machine,roof and wall panel machine,decking floor roll forming machine,floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine,cable tray machine, and so on.
Working flow:
Manual feeding→Feeding guide→roll forming →pressing and cutting------output table
Specifications
| Length of the main part | About7500*1650*1500mm |
| Weight of main part | About 5.5 tons |
| Voltage | 380V/50HZ/3Phase (as customer`s request) |
| Roller fixer | Middle plate welded |
| Frame | 350H steel welded |
| Middle plate thickness | 20mm/18mm/16mm/14mm/12mm |
| Drive mode | Chain Drice//Gear Drive |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel |
| Diameter of shafts | Φ70mm(depend on different design) |
| Number of rollers: | 14 rollers |
| Main power | 5.5kw |
| Cutting&Hydraulic | Double guide pillar |
| Hydraulic motor power | 3kw,4kw |
| Hydraulic Pressure | 10-12MPa |
| Cutting drive | Decelerating motor + Chain drive gear all by high-frequency |
| Control System | PLC system: Mitsubishi, Panasonic,Dental,Siemens,Schneider |
| Feeding Material width | Better as your drawing or from our designer |
| Feeding Thickness | 0.8~1.5mm |
| Effective width | Better as your drawing or from our designer |
| Productivity | 1.5-3m/min |
| Package of machine | Waterproofing membrane, standard export packing |
After-Sale Service
1. 18months warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the 18months warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the
warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
