Product Details:
|
| Product Name: | PPGI Color Steel Roofing Tile Roll Forming Machine/Step Roof Tile Roll Forming Machine | Color: | Blue Or As Your Requirement |
|---|---|---|---|
| Machine Dimention: | 6.5mx1.4mx1.4m | Machine Power: | 3kw+4kw |
| Warranty: | 2 Years | Control System: | PLC |
| High Light: | BV Roof Tile Roll Forming Machine,Roof Tile Roll Forming Machine 3kw,PPGI Tile Roll Forming Machine |
||

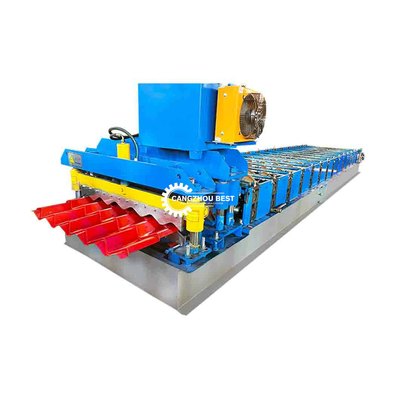

PPGI Color Steel Roofing Tile Roll Forming Machine/Step Roof Tile Roll Forming Machine
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
| Name | Colored steel galvanized glazed roof tile roll forming machine |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range |
914, 1000, 1220 or 1250 mm. According to your actual drawing. |
| Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 7.2*1.3*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
1. DECOILER
(1) Max. Width: 1500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

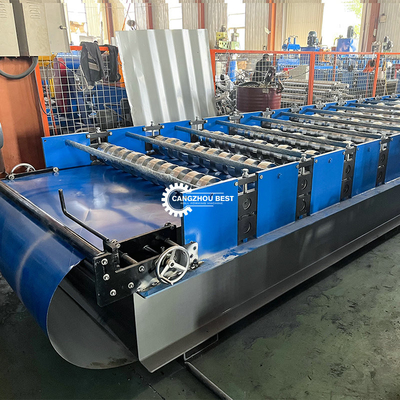

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

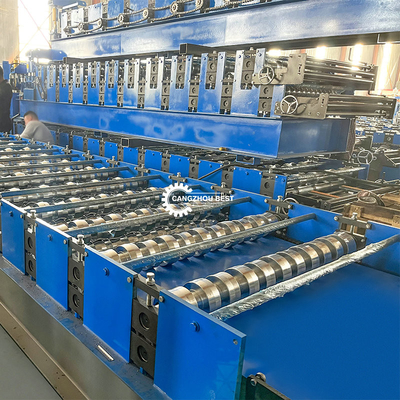

(2) NO. of roller Stations: 16roller stations

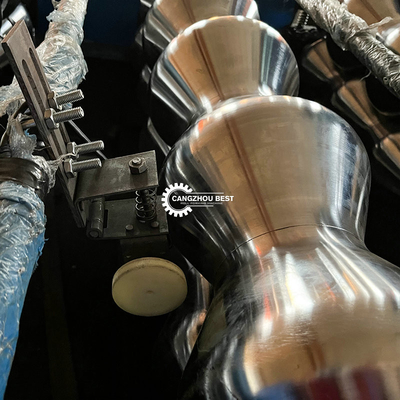

(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5kw
(9)Driven type: 1.0＂Chain
(10)Speed:about 3m/min
3. PRESSING AND CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 5.5kW
(5) Press tool material: Cr 12 steel after heat-treated
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase
(it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Motor power: 5.5 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand
(4)Cooling fan
6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
