Automatically Change Size Z Purlin Roll Forming Machine Gear Box Driven

Large Image : Automatically Change Size Z Purlin Roll Forming Machine Gear Box Driven

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY30

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	plastic film for naked machine
Delivery Time:	30-40 days
Supply Ability:	20 sets/month

Contact Now

Automatically Change Size Z Purlin Roll Forming Machine Gear Box Driven

Description

Product Name:	Gear Box Transmission Automatically Change Size Z Purlin Roll Forming Machine	Machine Speed:	4-6m/min
Machine Dimention:	7.5mx1.8mx1.4m	Driven System:	Chain Or Gear Box
Control System:	PLC	Warranty:	2 Years
Life Time:	More Than 10 Years
High Light:	Automatically Z Purlin Roll Forming Machine , 6m/min C Purlin Machine , Gear Box Driven C Purlin Machine

Gear Box Transmission Automatically Change Size Z Purlin Roll Forming Machine

Working flow

Decoiler------leveling------guiding------roll forming -----cut to length-----output table----press machine

Decoiler

Inner Diameter: Φ508 – Φ610 mm

Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kg

roll forming machine

Configurations	Manual decoiler, guiding platform, main roll forming machine, cutting device, hydrualic oil pump station, PLC control system, runout table
Material	Raw material	Galvanzied steel
Material	Thickness	1-3 mm
Manual decoiler	Inner diameter: 450-550 mm	Expand by manual
	Outer diameter: Max 1500 mm
	Max coil width: 500 mm
	Capacity: 5 T
Main roll forming machine	Forming steps	15 forming steps
	Shaft diameter	Φ 90 mm
	Design type	Middle plate welded
	Machine frame	400#H steel welded
	Roller material	GCr 12 steel
	Shaft material	40 CR
	Working speed	15 m/min
	Transport	By chains
	Driving motor power	18.5 KW
	Cutting type	Hydraulic cutting
	Cutting tolerance	± 1 mm
	Cutter material	GCr 12
	Cutter quantity	1 set
	Working pressure	20 MPA
Hydraulic device	Hydraulic oil	46# hydraulic oil
	Hydraulic power	5.5 KW
	Cutting length	As you required
	No distorting or wasting. High level safty factor
PLC control system	Language	English/ Chinese or as your request
PLC control system	Function	Can control the speed, length and quantity
Other informations	Weight	About 7.2 Tons
	Dimensions	780016001500 mm (LWH)
	Machine colour	As your request
	Voltage	380V-3P-50HZ or as your request

Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.

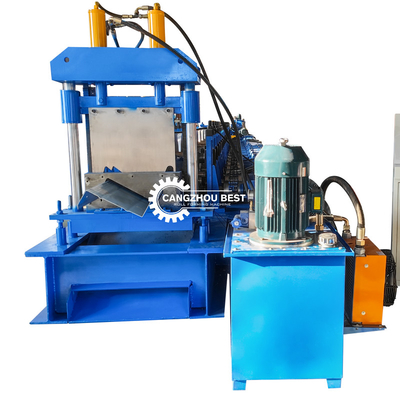

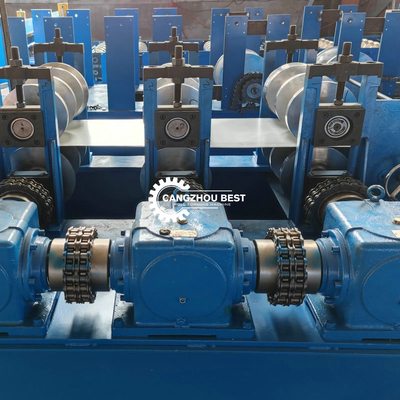

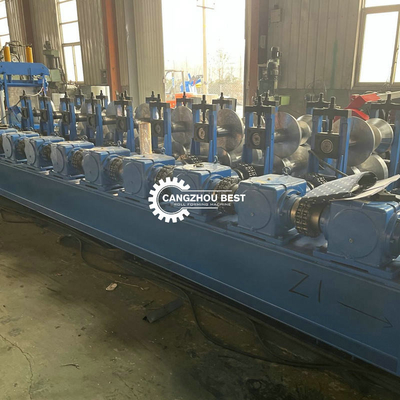

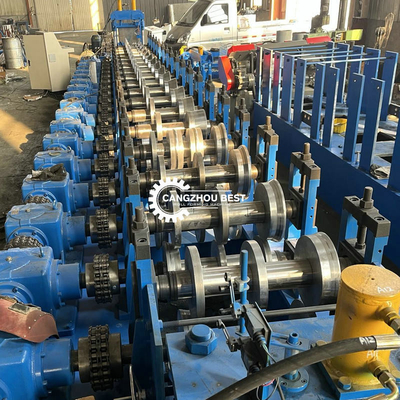

Machine Photos

Automatically Change Size Z Purlin Roll Forming Machine Gear Box Driven 0

Automatically Change Size Z Purlin Roll Forming Machine Gear Box Driven 1
