Product Details:
|
| Product Name: | High Speed Hydraulic IBR Roofing Tile Roll Forming Machine With Servo Motor Driven | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 4m/min | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Bottom Frame: | 360 H Steel |
| High Light: | 4m/Min IBR Roofing Sheet Making Machine,High Speed IBR Roofing Sheet Making Machine,4m/Min ibr roof sheeting machine |
||

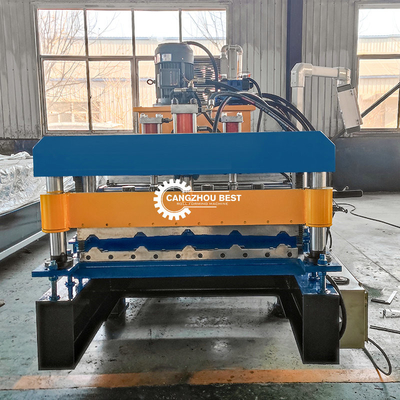

High Speed Hydraulic IBR Roofing Tile Roll Forming Machine with Servo Motor Driven
Machine Component
|
No.
|
Name
|
Amount(set)
|
|
1
|
Passive de-coiler
|
1
|
|
2
|
Roll forming machine
|
1
|
|
3
|
Hydraulic pressing &cutting blade
|
1
|
|
4
|
Hydraulic station
|
1
|
|
5
|
Computer control counter
|
1
|
|
6
|
Run out table
|
2
|
Working Flow:
Passively De-Coiling → Guiding & Feeding Material → Roll Forming → Cutting-to-Length → Output Panel.
Specifications:
Decoiler
Roof sheet make machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.
This loading frame decoiler also can use in other type machine, customer can buy it alone.
Machine frame
Roof sheet make machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
Forming roller
Roof sheet make machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.

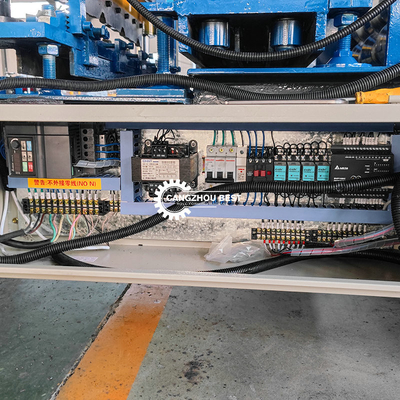

Control part
Roof sheet make machine control parts have different types, standard type are button control, through press buttons to realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
1. who are we?
Cangzhou BEST Machinery Co.,Ltd., founded in 2005. We have a high-quality team, 20 persons of foreign service team;Professional Engineer with 25 years experience of adjusting machines;Professional design term with 20 years design experience.
2. how can we guarantee quality?
In order to ensure the processing accuracy of the machine and ensure the stability of the machine's operation, the accessories on the pipe making machine are independently processed and produced. We have a variety of processing equipment,such as Horizontal machining center,Vertical Machining Center,CNC lathe,Coordinate Boring Machine. Our products have been widely used in multiple well-known stainless steel enterprises, and won wide recognition and good reputation.
3.what can you buy from us?
As one of the leading enterprises in stainless steel roll forming machine, has been specializing in manufacturing forming machine Making Machine in last 20 years.
4. why should you buy from us not from other suppliers?
1.Have an excellent service team; 2.Customized service for client's requiement; 3.High quality, competive price.
5. what services can we provide?
Offer Services We can provide pre-sales consultant& On-purchase for everyday 1.Reply Time: Within 1 hours(Not 24 hours) 2.Provide Tube Mill Machine relevant product information 3.Give you technical good suggestion After Service--Provide service 24 hours*7 days per week 1.Test the tube mill machine before shipment 2.Provide installation service, according to customer needs; 3.Training service: teach customers how to use the machine 4 Assistance service: ①Improve pipe quality;②Improve production capacity;③Reduce production cost;④Reduce warehouse storage
