Product Details:
|
| Product Name: | Color Steel Profile Double Layer IBR Roof Sheet/Roof Tile&Corrugated Sheet Making Roll Forming Machine | Color: | Blue Or As Your Requirement |
|---|---|---|---|
| Machine Dimention: | 6.5mx1.4mx1.4m | Machine Power: | 3kw+4kw |
| Warranty: | 2 Years | Control System: | PLC |
| High Light: | HRB60 IBR Roof Sheet Forming Machine,r IBR Roof Sheet Forming Machine 6.5m,Double Layer Roll Forming Machine 6.5m |
||

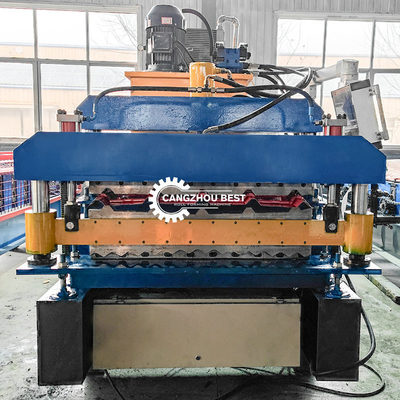

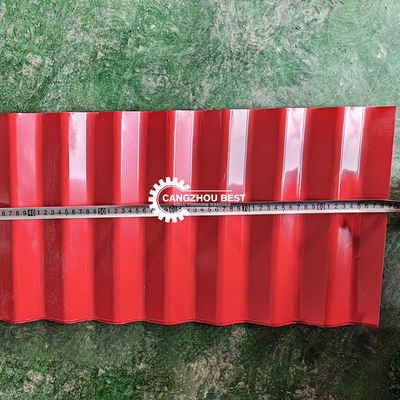

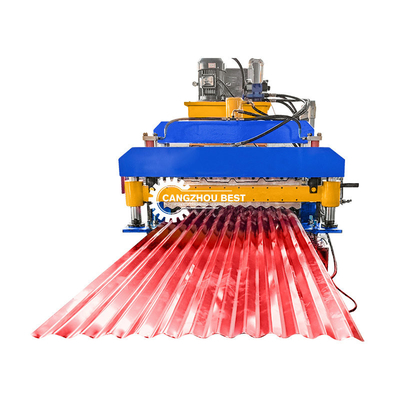

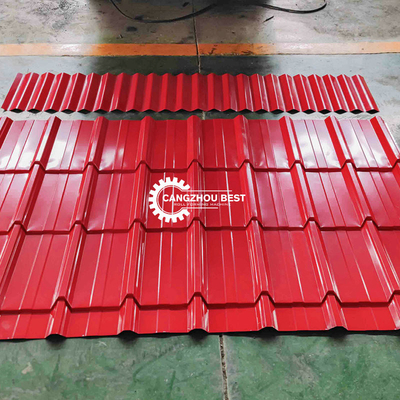

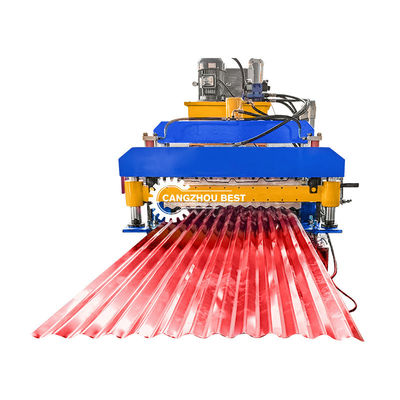

Color Steel Profile Double Layer IBR Roof Sheet/Roof Tile&Corrugated Sheet Making Roll Forming Machine
General details
| Suitable Material | HRB60 or equivalent(PPGI/PPGL/GI/GL) |
| Materials thickness | 0.3mm-0.8mm |
| Dimension | About 7.2*1.3*1.1m(L*W*H) , as per the drawing |
|
Length of the Sheet |
can set the length according to your infact need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting |
Automatically stop and cutting when it comes to the set length. |
Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
20mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 11-20 steps, according to the drawing. |
| Shaft Material |
Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
Cutting Blade Material |
Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting. |
Manual Decoiler (Hydraulic decoiler is also available)
work type: manual
usage: to support the coil and make the uncoiling
capacity: 5 tons
inner diameter: 450-550mm
coil width: 1250mm
Main roll forming machine
Feeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
Machine frame: 350H steel welded
Machine structure: middle plate
Roller station: 13 stations
Roller material: 45# steel withquenched treatment and hard chroming
Shaft diameter: 70mm,solid
Shaft material: 45# steel with tempering treatment
Motor power:5.5 kw
Speed: 0-4m/min
Transmission: By chains
Voltage: 380V,50HZ,3Phase
PLC control station
PLC brand: Delta from Taiwan
Frequency converter brand: Delta from Taiwan
Encoder: Omron
Function: Automatic control the length,quantity and batch
Hydraulic cutting system
Blade material: Cr12,with quenched treatment
Motor power: 4 kw
Cutting tolerance: +/-1 mm
Cooling system: with cooling fan
Cutting type: Hydraulic cutting
Feature: Low noise and high performance
Products receiving table
Type: Manual (Auto stacker is also available)
Length: 3 meters
Advantage of the service:
1. Provides engineering drawing design services
2.Provide machine customization service
3.Remote video service
4.Engineer on-the-spot installation service
5. Help customers booking shipping service
6.Help customers purchase raw materials service
Sales Service
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 35 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
