High Speed Flying Cutter Stud Purlin C Profile Steel Roll Forming Machine 15m/min

High Speed Flying Cutter Stud Purlin C Profile Steel Roll Forming Machine 15m/min
High Speed Flying Cutter Stud Purlin C Profile Steel Roll Forming Machine 15m/min High Speed Flying Cutter Stud Purlin C Profile Steel Roll Forming Machine 15m/min High Speed Flying Cutter Stud Purlin C Profile Steel Roll Forming Machine 15m/min High Speed Flying Cutter Stud Purlin C Profile Steel Roll Forming Machine 15m/min

Large Image :  High Speed Flying Cutter Stud Purlin C Profile Steel Roll Forming Machine 15m/min

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY65
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

High Speed Flying Cutter Stud Purlin C Profile Steel Roll Forming Machine 15m/min

Description
Product Name: High Speed Flying Cutter Stud Purlin C Profile Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 15m/min Without Punching Machine Dimention: 11.5mx1.8mx1.4m
Warranty: 2 Years Life Time: More Than 10 Years
Bottom Frame: 400 H Steel
High Light:

Flying Cutter c profile roll forming machine

,

C Profile Steel Roll Forming Machine 15m/Min

,

c purlin roll forming machine 15m/Min

High Speed Flying Cutter Stud Purlin C Profile Roll Forming Machine


Working flow


Decoiler-----feeding----- leveling ------roll forming -----cutting----output table

Machine Component



De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 set


Parameter


Decoiler


Type

Manual type(standard)

Hydraulic type(option)

Width

500mm

600mm

Capacity

5000kgs

5000kgs-8000kgs

Inner diameter

450-550mm

450-550mm

Outter dimater

1500mm

1800mm



Roll Forming Machine



Suitable for material with thickness 1-3mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/min

PLC Control System Omron
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc


ELECTRONIC CONTROL SYSTEM



Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



HYDRAULIC PUMP STATION


Oil type: 46# hydraulic oil
 Pump brand: China brand



We do you care:

WHY CHOOES CHBEST COMPANY

1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2) Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. ALIBAB’s Gold supplier with BV assessment and CE certificate.



4) Q:What can you do if the machine broken?

A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q:Can you be responsible for transport?

A: Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q:Can you supply the raw materials?

A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

Hope we could establish win-win business relations in the soon future!

We produce machines according to your different profile drawings:

We do Together, dear Customer, you are CHBEST 's friends. Meeting you, serving all of you, Enjoying with you.



Contact Information

Abby Song

WhatsApp/Wechat:008618701854523

Email:Sales2@chbestmachine.com

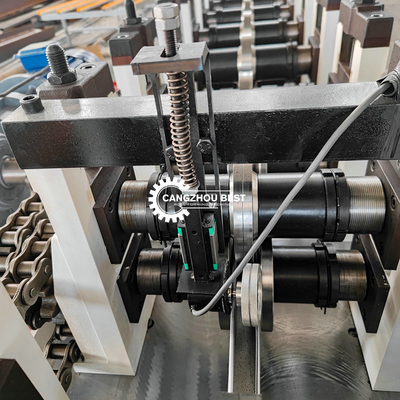

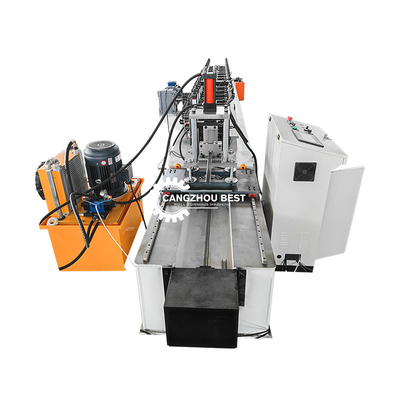

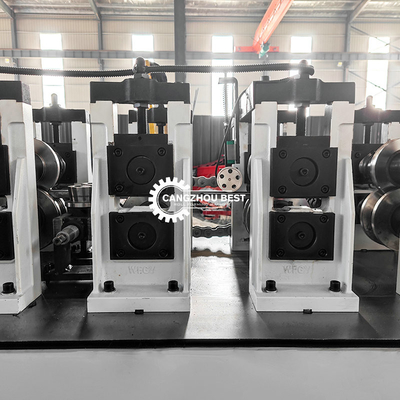

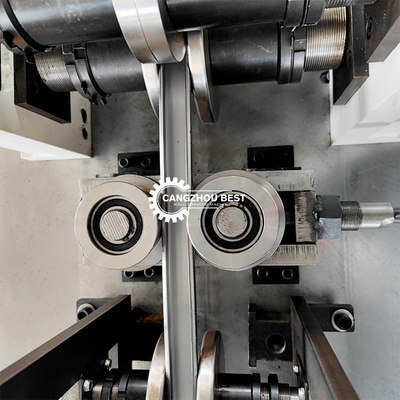

Machine Photo
