Product Details:
|
| Name: | Galvanized Steel Angle L Shape Roll Forming Machine Hydraulic Cutting Type | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | 5T |
| Dimension(l*w*h): | 7600mm*1300mm*1450mm | Use: | Door |
| High Light: | Angle Roll Forming Machine Hydraulic Cutting,Angle Roll Forming Machine 3phases,3phases Steel Roll Forming Machine |
||

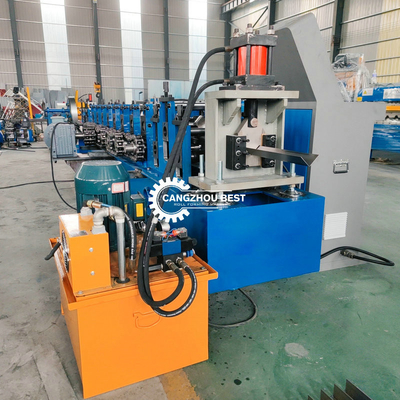

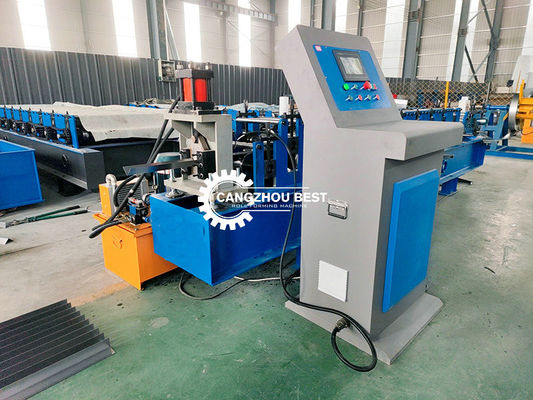

Galvanized Steel Angle L Shape Roll Forming Machine Hydraulic Cutting Type
Components of of Roller Shutter Door Roll Forming Machine
| No | Name | Qty |
| 1 | Decoiler | 1 |
| 2 | Automatic control system | 1 |
| 3 | Hydraulic system | 1 |
| 4 | Automatic cutting | 1 |
| 5 | Products receiving tables | 1 |
4. Process of of Angle Roll Forming Machine
Decoiler-active feeding-coil strip leveing –roll forming -measure length-cut to length-product packing
| Roller Shutter Door Roll Forming Machine | ||
| 1.Raw material | Thickness | 0.8-1.2mm |
| 2.Decoiler | Operation | automatic |
| Weight apacity | 2-5t | |
| 3.Main body | Roller station | 10-15 rows |
| Diameter of shaft | 65-80mm | |
| Material of rollers | 45# steel | |
| Material of shaft | 45# steel | |
| Frame | 16-18mm | |
| Chain | 1.32-1.97inch | |
| 4.Cutter | Operate | auto |
| Blade Material | cr12mov | |
| 5. Power | Voltage | customized |
| Power | 4-7.5kw | |
| 6.Control system | Electric Box | customized/Delta |
| Language | english chinese/customzied | |
| 7.Forming Speed | Forming Speed | 20-35m/min |
3. Main Machine Parameters:
| Components | Technical Parameters | Quantity | |
| 1 | Uncoiler | 1.Width: 100-300mm 2.Speed: Based on the machine speed 3. I.D: 460-508mm; O.D: 1350mm |
1 set |
| 2 | Roll Forming Machine |
1.Shaft: High quality 45# Steel with tempering treatment HB280 |
1 set |
| 3 | Fly Saw Cutting Device |
1.Material Of Cutting Mold: Cr12 steel with quenched treatment HRC 60-62 |
1 set |
| 5 | Hydraulic Station |
1. Power: 4kw |
2 pieces |
| 5 | PLC System |
1.Control System: Panasonic PLC |
1 set |
| 6 | Collection Station | 1. Angle iron welded | 1 set |
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
