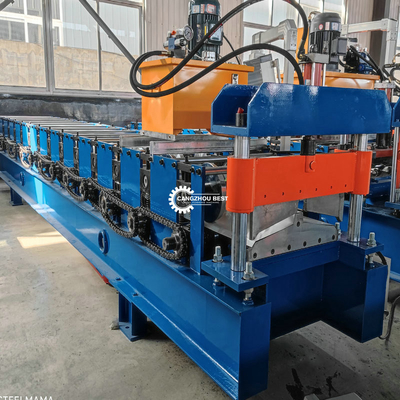

Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC

Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC
Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC
Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC

Large Image :  Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $6000-$15000/set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Steel Roof Sheet Ridge Cap / Roll Top IBR Roof Sheet Roll Forming Machine PLC

Description
Product Name: Steel Roof Sheet Ridge Cap/Roll Top IBR Roof Sheet Roll Forming Machine Machine Speed: 8-12m/min
Machine Dimention: 5.5mx1mx1.4m Machine Power: 3kw+3kw
Control System: PLC Cutting Type: Hydraulic
Warranty: 18months
High Light:

8m/min ibr roof sheet making machine

,

PLC IBR Roof Sheet Roll Forming Machine

,

Ridge Cap Roll Forming Machine PLC



Steel Roof Sheet Ridge Cap/Roll Top IBR Roof Sheet Roll Forming Machine



Component



No. Each Part Of The Line Quantity Function And Usage
1. 3 Ton Uncoiler / Decoiler 1 set Hold the steel coils and unwind the coils
2. Ridge Cap Cold Roll Former 1 set Roll form the material into required profile
3. Cutting Device 1 set ridge cap and cut to desired length
4. Run Out Table 2 sets Support ridge cap when it exits the machine
5. Electric Control Cabinet 1 set Highly automatic with PLC control system
6. Hydraulic Station 1 set Hydraulically powered for punching and cutting



Working Flow:



Decoiler------feeding------roll forming------cut to length-----output table



Main technical parameter:



1.DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

(5)Type: Manual

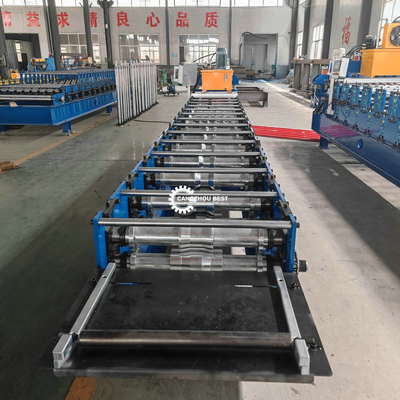

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 19groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 350 H-section steel
(8) Motor Power: 5.5kw

(9)Driven type: 1.0"Chain

(10)Speed:8-12m/min

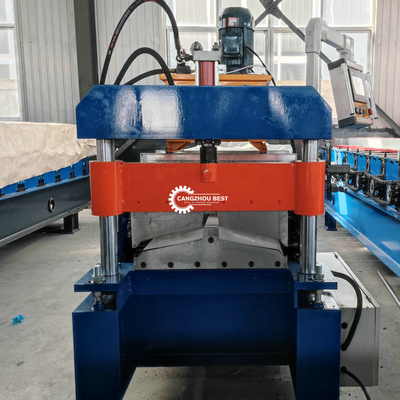

3. CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW


4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase

(it depends on customer requirement)



5. HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand



6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m



Company profile

Cangzhou Best Machinery Manufacuring co., LTD is specialized in the manufacture of high-end equiment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



Packing&Loading



1. one 20ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
