Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min

Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min
Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min
Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min

Large Image :  Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Model Number: YX70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD8000---15000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month
Contact Now

Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min

Description
Name: High Speed 20-25m/min Stud&Track&Furring Channel/Omega Roll Forming Machine Material Thickness: 0.6-1.6mm (235-345Mpa)
Shaft: High Quality 45# Steel With Heat Treatment. Forming Speed: About 20m/min
Controlling System: PLC
Highlight:

25m/min Omega Roll Forming Machine

,

20m/min Omega Roll Forming Machine

,

High Speed Omega Roll Forming Machine

High Speed 20-25m/min Stud&Track&Furring Channel/Omega Roll Forming Machine



Technical specification:



Stud, Track and Channel Roll Forming Machine
No. Item Specification Optional
1 Suitable material Type:Galvanized Coil, PPGI, Carbon steel Coil
Thickness(mm):0.25-1.2
Yield strength: 250 – 550MPa
Tensil stress( Mpa):G350Mpa-G550Mpa
2 Nominal forming speed(m/min) 10-40 Or according to your requirement
3 Forming station 8-14
4 Decoiler Manual decoiler Hydraulic decoiler or double head decoiler
5 Main machine motor Sino-German Brand Siemens
6 PLC brand Panasonic Siemens
7 Inverter brand Yaskawa
8 Driving system Chain drive Gearbox drive
9 Rollers’ materail Steel #45 GCr15
10 Station structure Wall panel station Forged Iron stationOr torri stand structure
11 Punching system No Hydraulic punching station or Punching press
12 Cutting system Post-cutting Pre-cutting
13 Power supply requirement 380V 60Hz Or according to your requirement
14 Machine color Industrial blue Or according to your requirement



Main components of stud and track roll forming machine



No. Item Quantity
1 Uncoiler 1 Set
2 Guide Device 1 Set
3 Roll Forming Machine 1 Set
4 Hydraulic Station 1 Set
5 Ran-out Table 2 Sets
6 PLC System 1 Set


Machine Components and Specifications

3 Ton Electric Uncoiler

  1. Max.weight: 3TON
  2. I.D of Coil: 450-550mm
  3. Steel Plate and C beam welded
  4. Function: The uncoiler is used to hold and uncoil the coils. This manual uncoil is unpowered. You need to manually adjust the uncoiler mandrel to tension the coil

Feeding and Guiding Device of Stud and Track Machine

  1. Width Range:200-300mm
  2. Feeding Type: Manual feeding
  3. Guiding Type: Manual adjust
  4. Function of Guiding: Avoid the deviation of the material

Metal Stud and Track Roll Forming Machine

  1. Machine Structure: The main base use C beam welded, assemble the driven motor inside of the machine, the mill structure use whole plate welded, bottom bearing block assemble in the steel plate directly which is same as Taiwan design
  2. Forming Speed: 12-15m/min
  3. Machine Voltage and Frequency:415V, 50Hz, 3Phase
  4. Material of Rollers: GCR15, CNC processing, HRC58-62, chromed 0.05mm thickness
  5. Forming Steps:18
  6. Material of Shaft: ASTM1045, lathe process and polish the out diameter
  7. Diameter of shaft: 60mm
  8. Material of Spacers: ASTM1045, wall thickness: 8mm, chromed and hardness treatment.
  9. Driven Motor: Chinese Guomao Brand, 5.5KW
  10. Transmission: By gears
  11. Machine Side Wall Panel:18mm

Hydraulic Cutting Device

  1. Cutting Type: Hydraulic cutting, roll forming part stop when cutting
  2. Hydraulic Motor Power:4KW
  3. Hydraulic Working Pressure: 12-16Mpa
  4. Material of Cutting Blade: Cr12 with heat treatment
  5. Length measuring: Automatic encoder(Omron Brand) length measuring
  6. Tolerance of Length: ±1.0mm

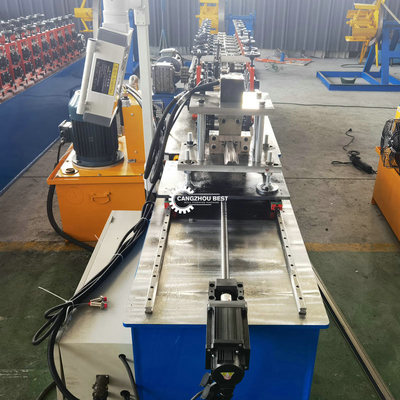

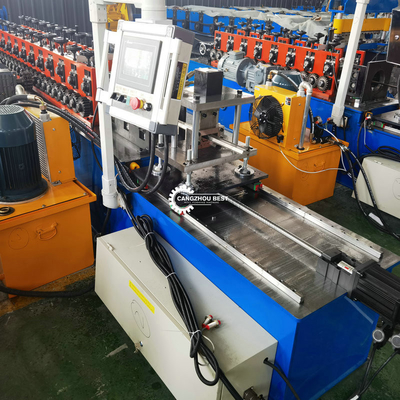

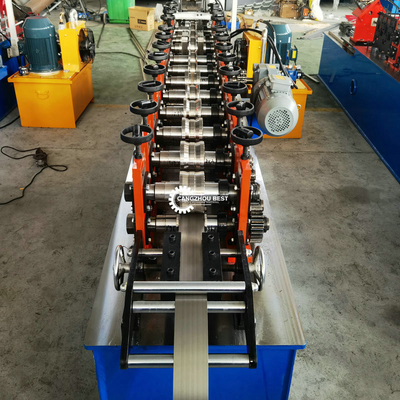

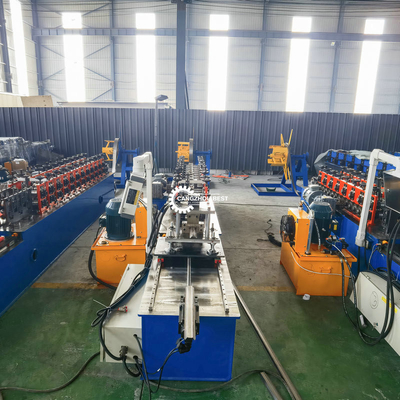

MACHINE PICTURE



Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min 0



Stud Track Furring Channel Omega Roll Forming Machine High Speed 20 - 25m/Min 1
