Product Details:
|
| Name: | Stud And Track Roll Forming Machine | Encoder: | Omron |
|---|---|---|---|
| Material: | Steel | Cutting System: | Hydraulic Cutting |
| Dimension: | 7.5*1.2*1.5m | Cutting Tolerance: | ±2mm |
| Cutting Length: | Adjustable | ||
| Highlight: | flying high speed stud roll former,gypsum board stud and track machine,ceiling drywall stud track forming machine |
||
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other.
|
Name |
Metal Stud And Track C Purlin Channel Roll Forming Machine |
|
Suitable Material |
Colored or galvanized steel coil, HRB60 or equivalent |
|
Thickness Range |
0.3-0.8 mm |
|
Coil Width Range |
According to your actual drawing. |
|
Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
|
Dimension |
About 4.8*0.8*1.2 m(L*W*H), as per the drawing |
|
Cutting |
Automatically stop and cutting when it comes to the set length. |
|
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Profile Drawing
Working flow:
Decoiler------feeding------roll forming---------cut to length-----output table
Machine components list:
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
Main technical parameter:

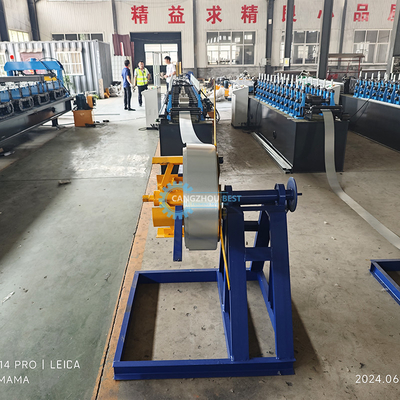

1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

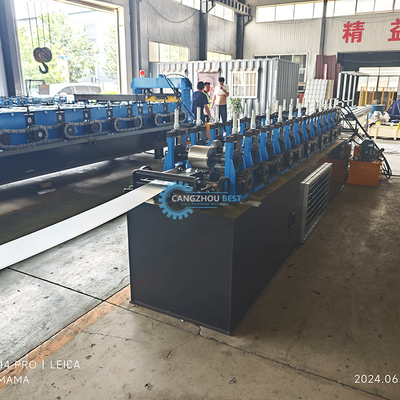

2. ROLL FORMING MACHINE
(1) Material Thickness: 1.0mm PPGI and GI
(2) NO. of roller Stations:8groups
(3) Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°
(5) Diameter of shaft: 50mm
(6) Frame panel : 14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw
(9)Driven type: chain
(10)Speed: 8-12m/min

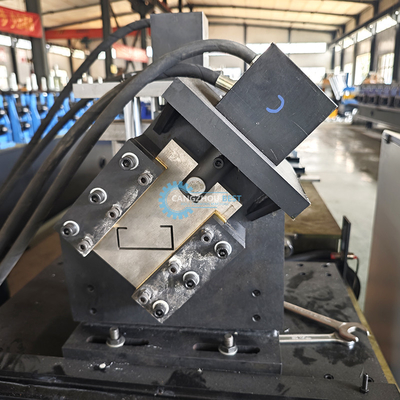

3. CUT-OFF DEVICE
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC58 – 62°
Cut-Off Type: Mould Cutting
Motor for Hydraulic Stand: 3kw
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand
(3)Cooling fan

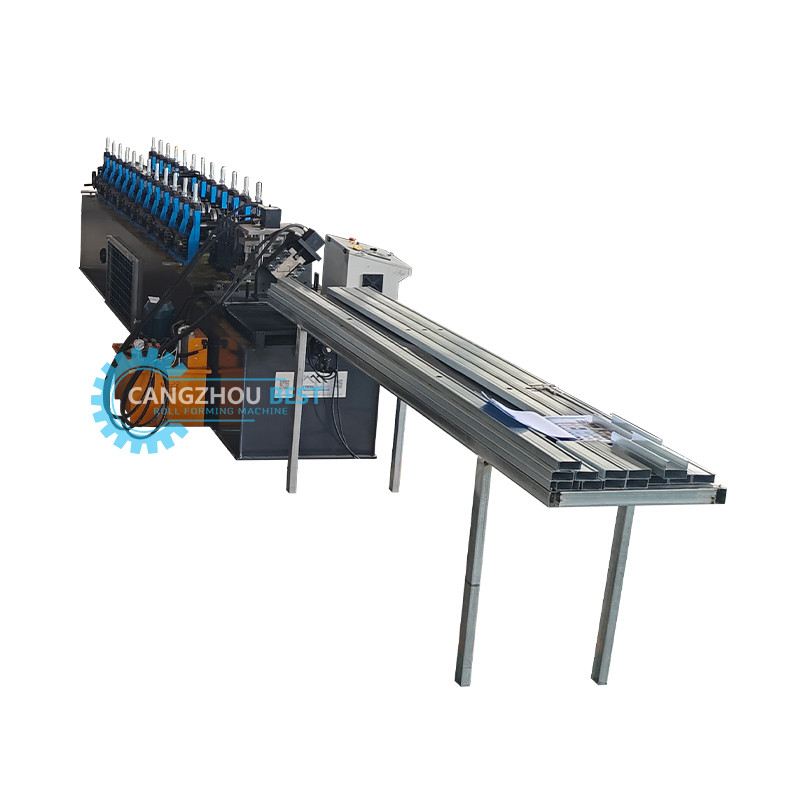

6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
