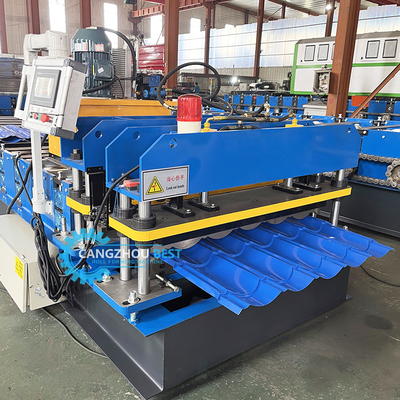

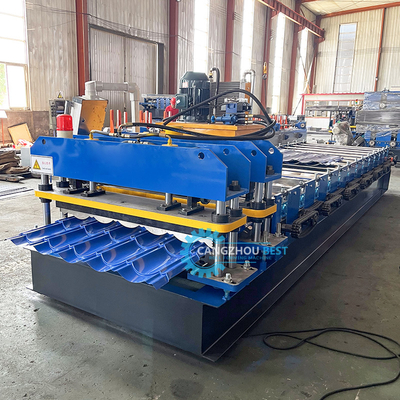

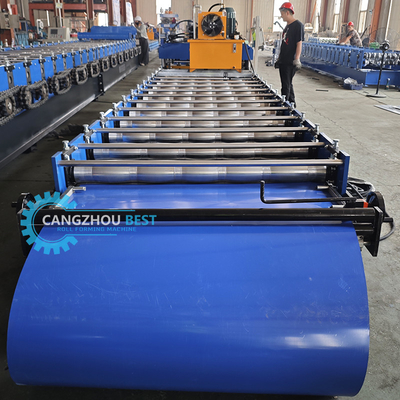

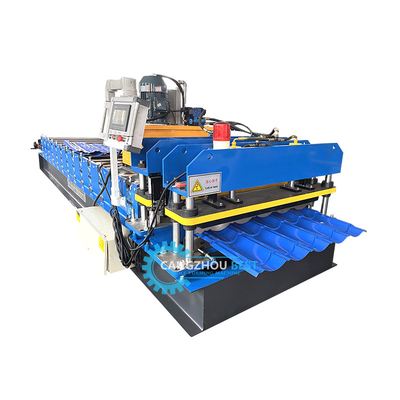

Steel Profile Zee Tile PPGI 0.3mm Roof Tile Forming Machine For Construction

Main technical parameter:

1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 13roller stations
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 11mm

(7) Bottom frame: 35# H-section steel
(8) Motor Power: 5.5kw

(9)Driven type:1.0’’Chain
(10)Speed: about 4m/min

3. PRESSING AND CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand:5.5kW

(5) Press tool material: Cr 12 steel after heat-treated

4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3)Length Error: ±2mm

(4)Language: English and Chinese

(5)Voltage: 380v/50HZ, 3Phase

(it depends on customer requirement)

5. HYDRAULIC PUMP STATION

(1) Motor power: 5.5 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

(4)Cooling fan

6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m
