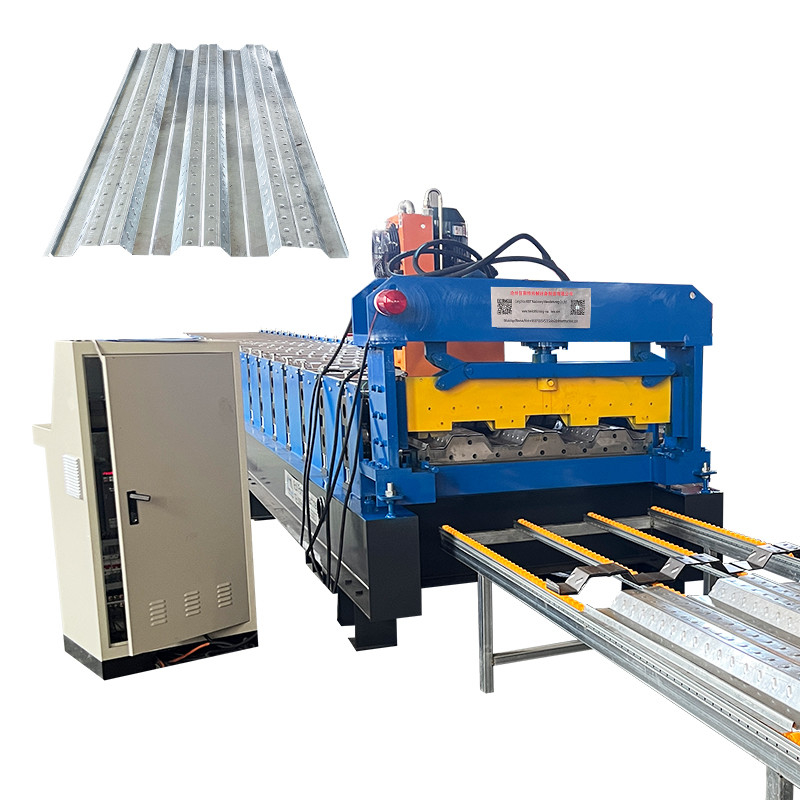

Material Thickness 1.2mm PLC Control Decking Sheet Roll Forming Machine

Material Thickness 1.2mm PLC Control Decking Sheet Roll Forming Machine

Technical Detail

1. Machine specification: forming thickness(0.3-1.0)xL, yield strength≤G250Mpa

2. Forming speed: 12-15M/min (EXCLUDING CUTTING STOP TIME)

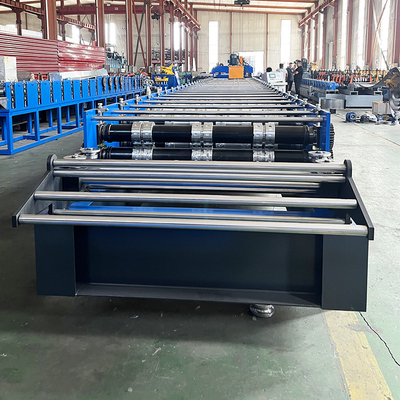

3. Forming roller: about 20 groups

4. Main motor power: 7.5KW

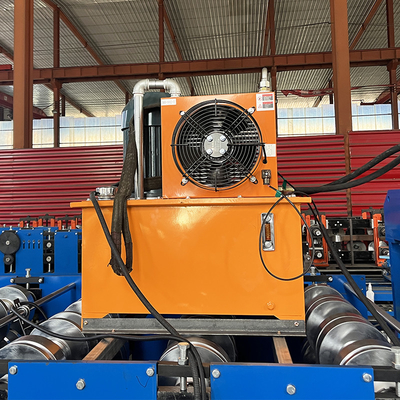

5. Hydraulic station power:4KW

6. Roller material: 45# forged steel, surface coated with chrome

7. Main shaft material: 45# steel

8. Main axis dia.: 68mm

9. Hydraulic cutting pressure: 10-12Mpa

10. Cutting method: hydraulic powered, cutting after roll forming.

11. Cutting blade material: Cr12 quenching treatment

12. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm

4)Our advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
