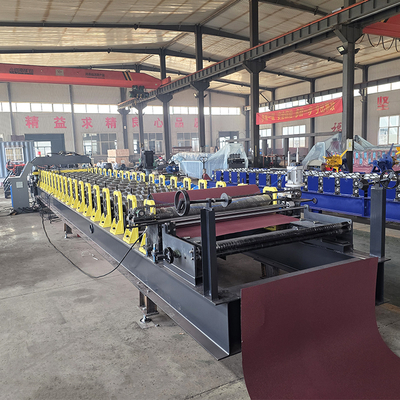

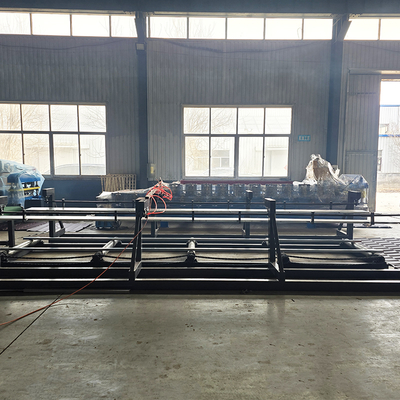

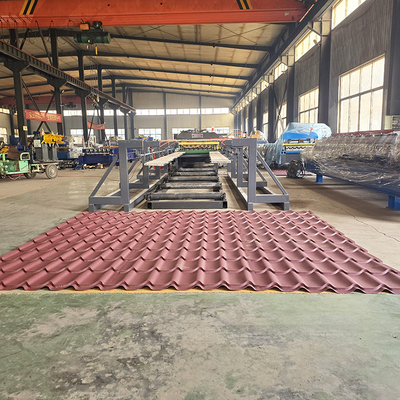

Automatically Color Steel Roofing Sheet Step Tile Making Roll Forming Machine
Product Paramenters
|
Suitable material
|
PPGI GI AL
|
|
Coil Width
|
914/925/1000/1200/1220/1250mm as custom
|
|
Thickness
|
0.3-0.8mm as custom
|
|
Power
|
380V 50Hz 3Phase as custom
|
|
Main motor
|
5.5KW Siemens
|
|
Hydraulic motor
|
4KW Siemens
|
|
Speed
|
15-30m/min
|
|
Forming stations
|
12-18 rows
|
|
Roller material
|
Cr12 steel with vacuum heat treatment HRC57°-60°
|
|
Shaft material
|
45# steel quenched and tempered
|
|
Shaft diameter
|
75mm
|
|
Chain
|
1.2 inch
|
|
Screem HMI
|
Delta , Touch Screen
|
|
PLC
|
Delta , Siemens
|
|
Processing precision
|
Within 1mm
|
|
Size
|
7.6m×1.5m×1.2m
|
|
Weight
|
4.5T
|
Machine list:
| No. |
Machine |
Qty. |
|
| 1 |
Screw Loader For Extruder |
1set |
Main Tile Extrusion Line
Ridge Tile Forming
|
| 2 |
Parallel Twin-Screw Extruder(PVC) |
1set |
| 3 |
Vacuum Loader And Drying Hopper |
1set |
| 4 |
Single Screw Extruder (ASA) |
1set |
| 5 |
Extrusion Mould And Distributor |
1set |
| 6 |
Calibration Mould And Trimming Device |
1set |
| 7 |
Haul Off Unit |
1set |
| 8 |
Cutter |
1set |
| 9 |
Stacker |
1set |
| 10 |
Ridge Tile Oven |
1set |
| 11 |
Ridge Tile Forming Machine And Mould |
1set |
| 12 |
Screw Loader For Mixer |
1set |
Auxiliary Equipment |
| 13 |
Mixer Unit |
1set |
| 14 |
Crusher |
1set |
| 15 |
Pulverizer |
1set |
Specifications
1. DECOILER
(1) Max. Width: 600 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1000 mm
(4) Max. Loading Capacity: 5000 kgs

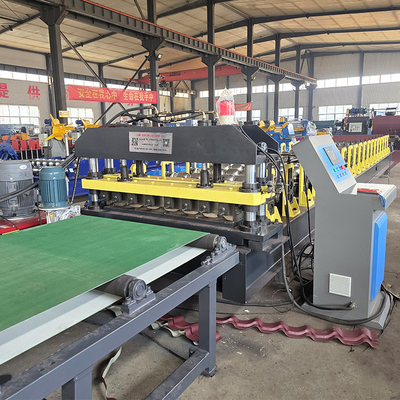

2.ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 14groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw
(9)Driven type: 1.0＂Chain
(10)Speed:8-12m/min
3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3)Length Error: ±2mm
(4)Language: English and Chinese
(5)Voltage: 380v/50HZ, 3Phase
(it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand
(4) Cooling fan
