Euro Tile Roofing Sheet Roll Forming Machine 0.4-0.6mm Steel

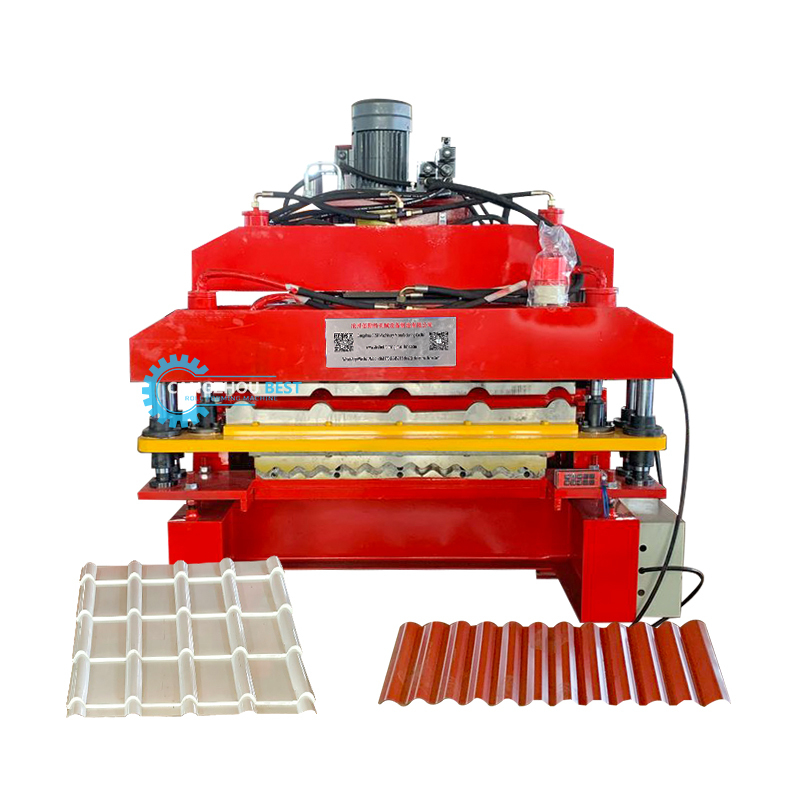

Large Image : Euro Tile Roofing Sheet Roll Forming Machine 0.4-0.6mm Steel

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE
Model Number:	YX1010

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$8000---10000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Euro Tile Roofing Sheet Roll Forming Machine 0.4-0.6mm Steel

Description

Cutting Blade Material:	Cr12, Heat Treatment	Weight:	5T Or As Per Request
Control System:	PLC Control System	Raw Material:	Pre-painted Coil Sheets, Soft
Shaft Diameter:	75mm	Roller Materia:	45# Steel
Highlight:	Euro tile roofing sheet machine , Steel roll forming machine 0.4-0.6mm , Roof tile roll forming equipment

Steel Profile Euro Tile/Roman Tile/Bamboo Tile Roofing Sheet Roll Forming Machine

Quick Detail:

Thickness : 0.4mm-0.6mm
Material : High quality pre-painted coil
Input width : 1219mm
Effective width: 960mm
Material weight : 5MT as standard
Coil inner diameter : 508mm
Driven way: by driven AC motor or Siemens motor with gear box on each stage to improve the precision
Pressing stair distance tolerance : ±0.5mm
Cutting tolerance : ±1mm

Application:

Most of time, a glazed tile roll forming machine has more roll forming stations and rolling tools than a regular roof panel roll forming machine does, and an extra hydraulic pressing equipment also contributes a higher price compared to a regular metal roofing sheet roll forming machine.

This semi-round shape profile is popular in Philippines, Sri Lanka with heavy strength pressures

Machine list:

Name	NO.	Unit
1.De-coiler	1	set
2.Forming machine	1	set
3.Cutting device	1	set
4.PLC control box	1	set
5.Hydraulic pump station	1	set
6.Production support table	1	set

Description/Technical Parameter details of complete line:

5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons

Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW

Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control

To cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

Roll forming machine with stair-drawing and cutting details as below table :

Suitable roll forming material	Color steel sheet or galvanized steel sheet, soft material
Thickness	0.4mm*0.6mm
Coil input width	1219mm
Carriage Frame design	Wall-plate-frame-design, plate thickness 18mm
Roll forming stages	16 stages
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	7.5Kw
Production speed	3-4m/min, 7-8m/min as request
Stair depth	20mm or as request
Stair distance	350mm or as per order
Hydraulic group	7.5Kw with professional fans cooling system
Material of cutting blade	Cr12, hear treatment
Electric Voltage Standard	415V/50Hz/3Ph or as the customer's requirements
Major Color of Machine Painted	RAL 5015(Blue) or as per customer’s requirements

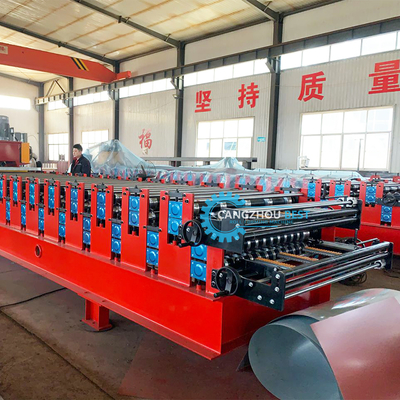

Euro Tile Roofing Sheet Roll Forming Machine 0.4-0.6mm Steel 0

PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Control the quantity, drawing length (250-350mm) & cutting length (min.800mm) automatically.

Cut-to-length tolerance≤±1mm

Control Voltage 24V

Product Rack Un-powered, 3 units

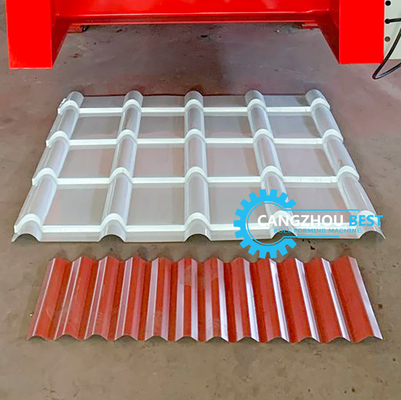

Euro Tile Roofing Sheet Roll Forming Machine 0.4-0.6mm Steel 1
