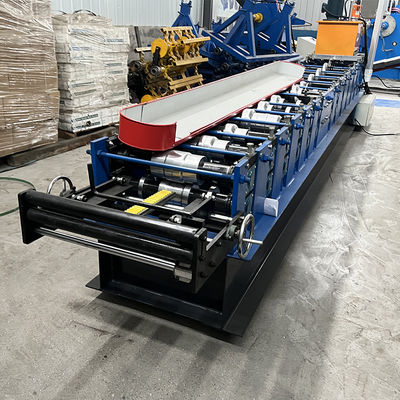

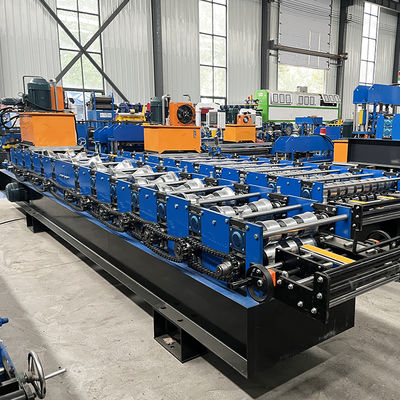

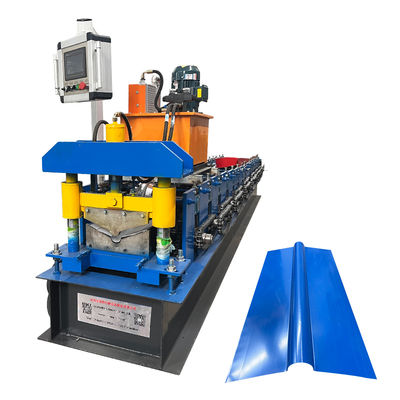

Steel Profile Ridge Cap Roll Forming Machine with 380v Voltage 14 Rows Rollers and 40# Hydraulic for Roof Tile IBR Corrugated Design

Large Image : Steel Profile Ridge Cap Roll Forming Machine with 380v Voltage 14 Rows Rollers and 40# Hydraulic for Roof Tile IBR Corrugated Design

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE
Model Number:	YX400

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$6000---10000
Delivery Time:	30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

Steel Profile Ridge Cap Roll Forming Machine with 380v Voltage 14 Rows Rollers and 40# Hydraulic for Roof Tile IBR Corrugated Design

Description

Name:	Steel Profile Ridge Cap Roll Forming Machine For Roof Tile&IBR&Corrugated Design	Key Word:	Steel Ridge Capping Roll Forming Machine
Hydraulic Power:	3kw	Main Power:	3kw
PLC Brand:	Delta	Inverter Brand:	Delta
Voltage:	380v	Color:	As Client Request
Highlight:	380v Voltage Ridge Cap Roll Forming Machine , 14 Rows Rollers Steel Profile Roll Forming Machine , 40# Hydraulic Roof Tile Roll Forming Machine

Steel Profile Ridge Cap Roll Forming Machine for Roof Tile, IBR & Corrugated Design

Key Features

Suitable to process: Color steel plate
Width of the plate: 400mm
Rollers: 14 rows
Dimensions: 5.4×1.15×1.51m
Power: 3+3kw
Rolling material: 45# steel (plated chrome on surface)
Thickness of the plate: 0.3-0.6mm
Voltage: 380V 50Hz 3 phases
Material of the cutting plate: Cr12
Hydraulic: 40#
Processing precision: Within 1.00mm
Control system: PLC control

Machine Description

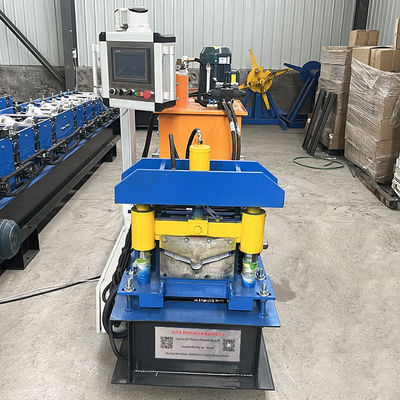

This machine produces two models of roofing, the most popular models widely used in roofing and walls of workshops. Two cylinders on the cutting head allow hydraulic oil to flow into the cylinder, enabling easy control of the cutter.

Technical Specifications

NO.	ITEM	PARAMETER	NOTE
1	Suitable material	Type: Pre-painted sheet, Galvanized sheet Width: 500mm Thickness: 0.3-0.8mm Yield stress: G220-G300
2	Product specifications	Detail as the attached file Length: Any length
3	Power requirement	Type: 380v/3ph/50hz Main Motor power: 5.5kw Cutter power: 4kw	Motor brand Shanghai Lichao
4	Forming speed	2m/min	Not include the time of cutting
5	Manual Decoiler (Optional)	Type: Manual Max capacity: 5t Suitable coil OD: 1250mm Suitable coil ID: 508mm
6	Forming stand	14	Depend on actual design
7	Thickness of structure	20mm
8	Forming shaft diameter	70 solid
9	Type of cutting	Roll formed and length-set cutting
10	Control system	Panasonic PLC and inverter
11	Install dimension	8.8m×1.5m×1.3m	Without panel length
12	Total weight (Approx)	4.5T	Depend on final design

Production Flow Chart

Uncoiling → Feeding material into machine → Roll forming → Measuring length → Auto cutting → Products receiving

Applications

Roof panels and wall panels are widely used in building construction including steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. Equipment can be custom designed and manufactured to meet specific customer requirements. This model is particularly popular in Mexico.

Competitive Advantages

Space-saving design
Easy installation
Comprehensive service support
Excellent build quality
User-friendly operation
