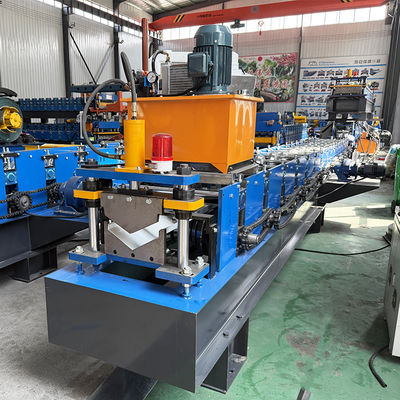

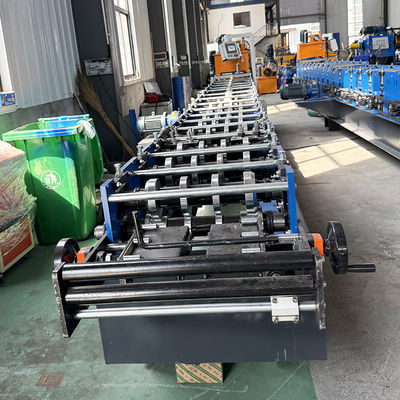

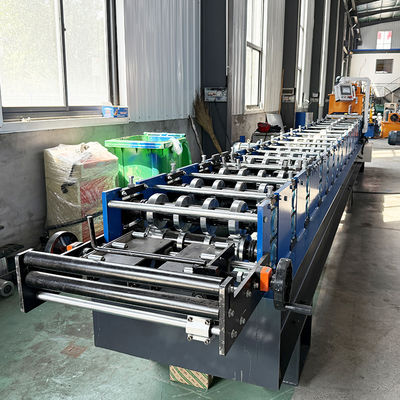

Color Steel Tile Roof Ridge Cap Roll Forming Machine PLC Control Hydraulic Cutting Steel Profile

Large Image : Color Steel Tile Roof Ridge Cap Roll Forming Machine PLC Control Hydraulic Cutting Steel Profile

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE
Model Number:	YX255

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$6000---10000
Delivery Time:	30 work days
Payment Terms:	L/C,T/T
Supply Ability:	20 sets/month

Contact Now

Color Steel Tile Roof Ridge Cap Roll Forming Machine PLC Control Hydraulic Cutting Steel Profile

Description

Name:	Color Steel Tile Roof Ridge Cap Roll Forming Machine PLC Control Hydraulic Cutting Steel Profile	Main Power:	3kw
Speed:	4m/min	Color:	As Request
Material:	0.4mm	Control System:	PLC
Driven Type:	Motor
Highlight:	PLC control ridge cap roll forming machine , hydraulic cutting steel profile machine , color steel tile roof ridge cap machine

Color Steel Tile Roof Ridge Cap Roll Forming Machine PLC Control Hydraulic Cutting Steel Profile

Machine Specifications

Suitable to process: Color steel plate
Width of the plate: 400mm
Rollers: 16 rows
Dimensions: 5.4×1.15×1.51m
Power: 3+3kw
Rolling material: 45# steel (plated chrome on surface)
Thickness of the plate: 0.3-0.6mm
Voltage: 380V 50Hz 3phases
Material of the cutting plate: Cr12
Hydraulic: 40#
Processing precision: Within 1.00mm
Control system: PLC control

Machine Description

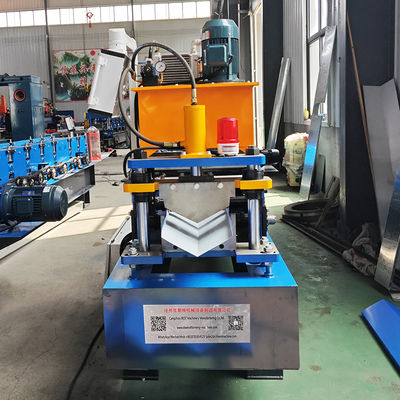

This machine produces two models of roofing, the most popular models widely used in workshop roofing and walls. The cutting head features two cylinders where hydraulic oil flows in to control the cutter precisely.

Detailed Specifications

NO.	ITEM	PARAMETER	NOTE
1.	Suitable material	Type: Pre-painted sheet, Galvanized sheet Width: 500mm Thickness: 0.3-0.8mm Yield stress: G220-G300
2.	Product specifications	Detail as the attached file Length: Any length
3.	Power requirement	Type: 380v/3ph/50hz Main Motor power: 5.5kw Cutter power: 4kw	Motor brand shanghai Lichao
4.	Forming speed	2m/min	Not include the time of cutting
5.	Manual Decoiler (Optional)	Type: Manual Max capacity: 5t Suitable coil OD: 1250mm Suitable coil ID: 508mm
6.	Forming stand	15	Depend on actual design
7.	Thickness of structure	16mm
8.	Forming shaft diameter	70 solid
9.	Type of cutting	Roll formed and length-set cutting
10.	Control system	Panasonic PLC and inverter
11.	Install dimension	8.8m×1.5m×1.3m	Without panel length
12.	Total weight (Approx)	4.5T	Depend on final design

Production Flow Chart

Uncoiling → Feeding material into machine → Roll forming → Measuring length → Auto cutting → Products receiving

Applications

Roof panel/wall panel are widely used in steel-structured buildings including large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and various greenhouses. Equipment can be customized to customer requirements. This model is particularly popular in Mexico.

Competitive Advantages

Space saving design

Easy installation

Comprehensive service

Premium quality

User-friendly operation
