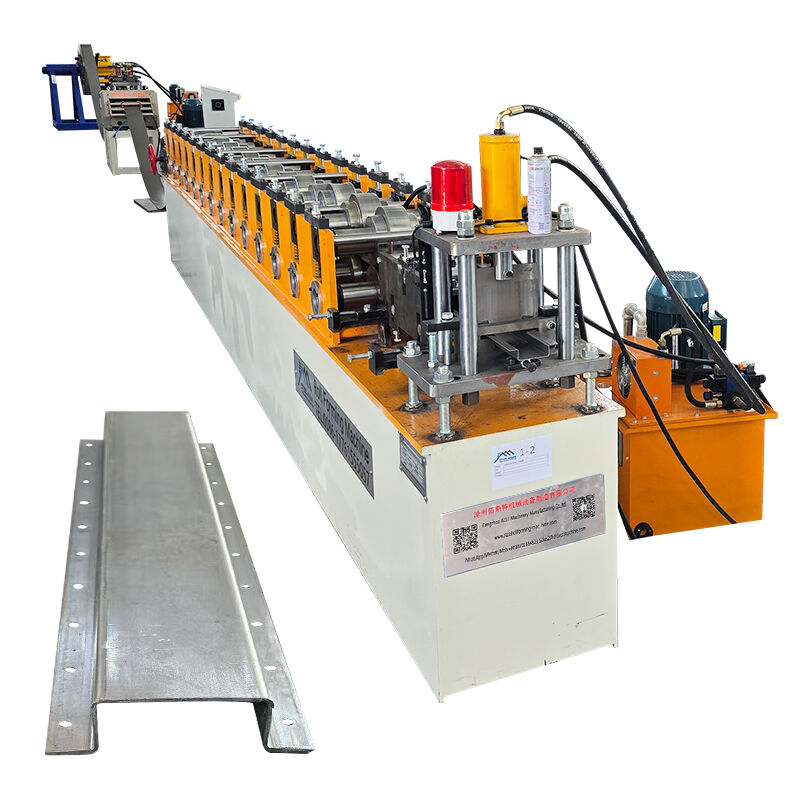

Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching

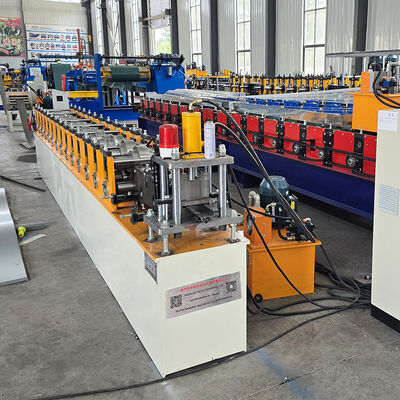

Large Image : Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching

Product Details:

Place of Origin:	Hebei,China
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	CHBEST-30

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	standard
Delivery Time:	35days
Supply Ability:	15sets/month

Contact Now

Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching

Description

Name:	Galvanized Steel Hat Channel Purlin Roll Forming Machine With Hydraulic Punching	Power:	7.5kw
Dimension:	770015501510mm	Color:	As Your Requires
Bottom Frame:	360H Steel	Warranty:	2 Year
Highlight:	galvanized steel hat channel machine , hydraulic punching purlin roll former , steel purlin roll forming machine

Galvanized Steel Hat Channel Purlin Roll Forming Machine with Hydraulic Punching

Professional galvanized steel hat channel purlin roll forming system integrated with hydraulic punching capabilities for efficient manufacturing operations.

Company Profile

Cangzhou Best Machinery Manufacturing Co., LTD specializes in manufacturing high-end cold bending forming equipment. Our team includes professional engineers with over 20 years of experience in cold bending mechanical equipment design, providing specialized design and manufacturing solutions along with comprehensive installation, guidance, production, and commissioning services.

Working Flow

Decoiler → Leveling → Roll Forming → Punching → Cutting → Output Table

Machine Components

Component	Quantity
Decoiler	1 set
Leveling Device	1 set
Roll Forming Machine	1 set
Punching Device	1 set
Cutting Device	1 set
PLC Control System	1 set
Hydraulic Pump	1 set
Output Table	1 set

Machine Parameters

Decoiler

Type	Hydraulic or Manual (Optional)
Inner Diameter	450-550mm
Outer Diameter	1500mm
Width	500mm
Capacity	5000kg

Leveling Device

Width	600mm
Rollers for Leveling	5 rollers
Material for Rollers	GCr15 steel
Hardness for Heat Treatment	HRC 55-60°

Roll Forming Machine

Roller Station	13 steps
Roller Material	Gcr15 steel
Thickness	1mm

Punching Device

Type	4 pillars hydraulic punches
Length for Punch Table	1.2m × 1.5m
Motor for Hydraulic Punch	7.5 kw
Hole-Punching Modular	3 pieces

Cutting Device

Type	Hydraulic
Power	5.5kw
Driven	1 inch chain
Cutting Blade	Cr12 steel

Control System

Type	PLC Frequency Control System with touch screen
PLC Brand	Japan Panasonic
Encoder Brand	Omron
Length Error	±2mm
Language	English and Chinese

Hydraulic Pump

Power	3kw
Oil Type	46# hydraulic oil
Pump Brand	China Brand

Output Table

Length	6m
Function	Simple design for loading finished products

Additional Specifications

Roller Material	Cold Roller Steel Sheet
Material for Shaft	GCR45 steel
Hardness for Heat Treatment	HRC55-60°
Diameter of Shaft	80mm
Frame Panel Thickness	20mm
Bottom Frame	360# H-section steel
Rolling Speed	8-12m/min

Our Service

Service Aspect	Details
Payment Type	30% T/T prepaid and balance paid before loading
Delivery Time	30 days after receiving advance payment
Guarantee Period	18 months free service / pay service for machine lifetime
Installation and Training	On-site training for visiting buyers; user manual and video guidance for remote support; technician dispatch available with accommodation arrangements

Packing Details

1 × 40 GP container with main machine fastened with iron wire
Rollers painted with oil and packed with plastic film
Electrical devices packed in wooden boxes for standard export packing
All components fixed by steel wire within container
