PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness

Large Image : PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY150

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	plastic film for naked machine
Delivery Time:	30-40 days
Supply Ability:	20 sets/month

Contact Now

PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness

Description

Product Name:	PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness	Color:	Blue Or As Your Request
Machine Dimention:	7.5mx1.8mx1.4m	Control System:	PLC
Cutting Type:	Hydraulic	Warranty:	2 Years
Life Time:	More Than 10 Years
Highlight:	PLC control purlin roll forming machine , galvanized steel profile forming machine , 3mm thickness purlin making machine

PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine

Advanced 3mm thickness roll forming machine with PLC control system for efficient production of galvanized steel profile purlins.

Production Workflow

Decoiler → Feeding → Leveling → Roll Forming → Punching → Cutting → Output Table

Machine Components

Component	Quantity
De-coiler	1 set
Leveling device	1 set
Forming machine	1 set
Punching device	1 set
Cutting device	1 set
PLC control box	1 set
Hydraulic pump station	1 set
Production support table	1 set

Technical Specifications

Decoiler

Max. Width: 500mm

Inner Diameter: Φ450 - Φ550 mm

Out Diameter: 1500 mm

Max. Loading Capacity: 3000 kgs

Leveling Device

Thickness: 1-3 mm

Rollers for Leveling: 5 rollers

Roll Forming Machine

Material Thickness: Galvanized steel 1.5-3.0mm, stainless 1.5mm

Rollers: 18 Groups

Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

Material for shaft: #45 steel after treatment

Diameter of shaft: 80mm

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel

Motor Power: 11kw

Rolling Speed: 8-10 m/min

Punching Device Specifications

Item	Parameter Detail
Frame processing	The whole leveling surface is made by drilling machine
Mould material	Cr12mov
Mould processing	Wire electrode-cutting for the mould shape, saves pressure
Hole size	According to your request
Hole number	According to your request
Pressure	20Mpa

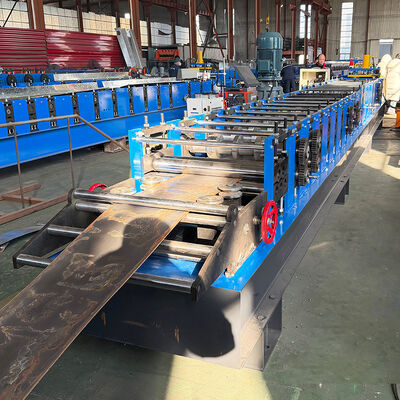

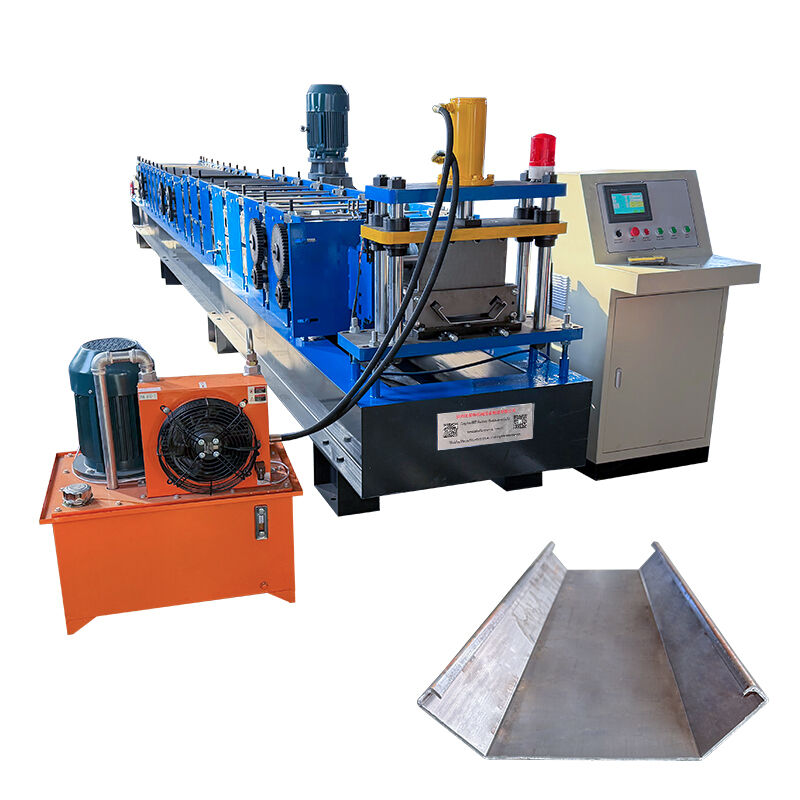

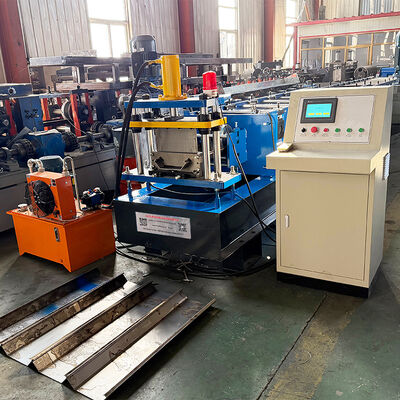

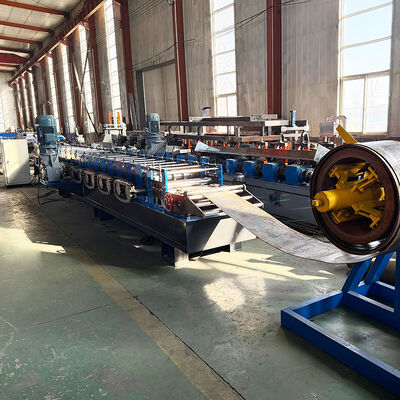

Product Photos

Installation & Training

On-site training available for visiting buyers with face-to-face installation and operation instruction

Remote support includes user manual and instructional CD for self-installation

Technical assistance available at your facility with arrangement of board and lodging

Request for Quotation Process

Submit your specific requirements and production needs

Receive customized quotation with recommended solutions

Negotiate and confirm all details including specifications and trading terms

Complete advanced payment and begin production

Factory quality inspection and adjustments to meet contract requirements

Finalize balance payment and arrange shipping

Receive shipping documentation for timely customs clearance

Take delivery of goods and activate warranty coverage
