Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine

Large Image : Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY1120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	plastic film for naked machine
Delivery Time:	20-30 days
Supply Ability:	20 sets/month

Contact Now

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine

Description

Name:	Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine	Machine Speed:	4-6m/min
Driven System:	Chain Or Gear Box	Control System:	PLC
Cutting Type:	Hydraulic	Blade:	Cr12
Usage:	Roof Building	Color:	Customized
Condition:	New
Highlight:	Hydraulic steel roofing tile machine , 3D Euro tile roll forming machine , Roof tile profile forming machine

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine Machine components

No.	Name	Qty
1.	De-coiler	1 Set
2.	Roll Forming Machine	1 Set
3.	Pressing Device	1 Set
4.	Hydraulic Cutting Device	1 Set
5.	PLC Control Box	1 Set
6.	Hydraulic Pump	1 Set
7.	Stacker	1 Set

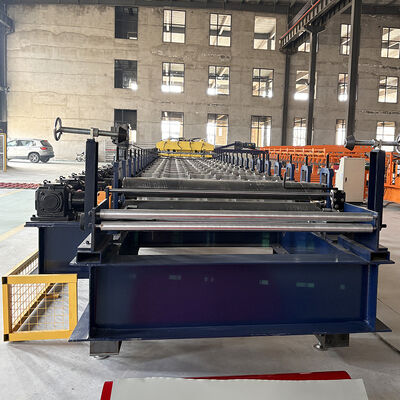

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine 1

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	1250mm	1500mm
Capacity	Max 5tons	From 5-15 tons
Inner diameter	φ508-610mm	φ508-610mm
Outer diameter	φ1500mm	φ1800mm

roll forming

(1) Material Thickness: 0.4-0.8mm
(2) Rollers: 22steps

(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(4) Material for shaft: high grade No.45 steel after treatment

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5 kw

(9) Driven type: 1.0＂Chain

Pressing and cutting device

Type	bearing sliding type
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the upper balde can not be straight. this is technology
Working	Hydraulic type

Stacker

Type	Manual	Auto(option)
Length	1.5m-2m	6m or 12m

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

Terms:

1. Delivery:in stock

2. Package:export standard package for container

3. Payment:TT (30% by TT in advance,70% by TT after you inspect machine we need)

4. Delivery date:within 30 working days after receiving deposit

5. Products Warranty:18months,and we will provide the technical support for whole life of the equipment.

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine After-sale Service :
Any questions, contact us by WhatsApp or Telephone.

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine Photos

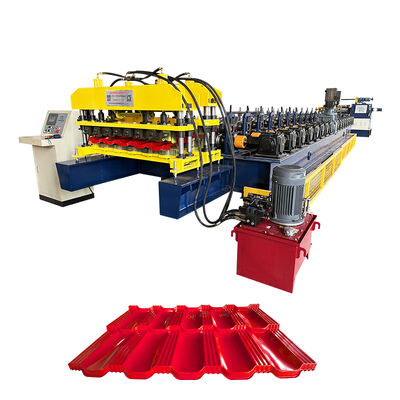

Hydraulic Cutting 3D Steel Euro Tile Profile Roofing Tile Roll Forming Machine 2
