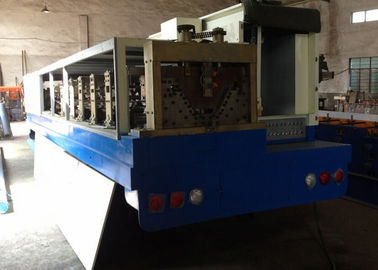

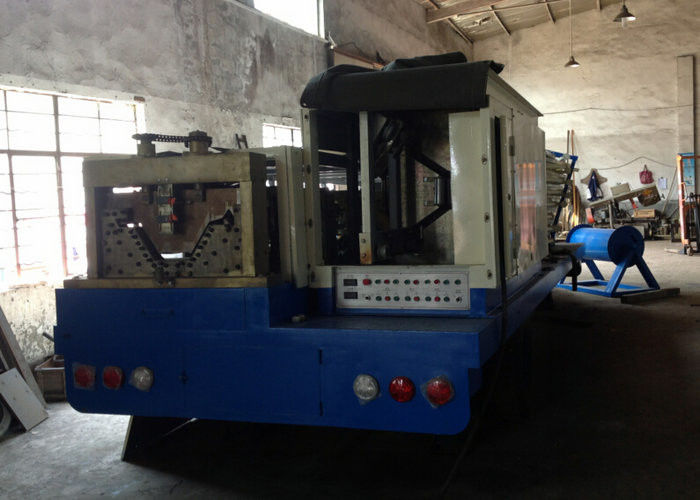

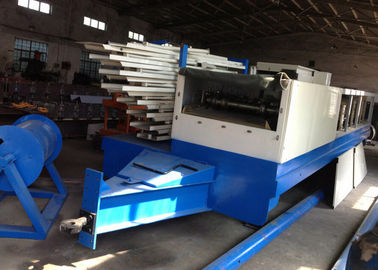

UBM K Span Roll Forming Machine Mic120 / 240 10mx2.1mx2.1m Dimention

UBM K Span Roll Forming Machine  Mic120 / 240 10mx2.1mx2.1m Dimention
UBM K Span Roll Forming Machine  Mic120 / 240 10mx2.1mx2.1m Dimention UBM K Span Roll Forming Machine  Mic120 / 240 10mx2.1mx2.1m Dimention UBM K Span Roll Forming Machine  Mic120 / 240 10mx2.1mx2.1m Dimention UBM K Span Roll Forming Machine  Mic120 / 240 10mx2.1mx2.1m Dimention

Large Image :  UBM K Span Roll Forming Machine Mic120 / 240 10mx2.1mx2.1m Dimention

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY914-610
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $25500-$38000/set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

UBM K Span Roll Forming Machine Mic120 / 240 10mx2.1mx2.1m Dimention

Description
Product Name: China UBM K Span Mic120/240 Roll Forming Machine Manufacturer Color: Blue Or As Your Request
Machine Speed: 8-12m/min Machine Dimention: 10mx2.1mx2.1m
Machine Power: 7.5kw+3kw+1.5kw+1.5kw Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

k span forming machine

,

automatic roll forming machine

UBM K Span Roll Forming Machine Mic120 / 240 10mx2.1mx2.1m Dimention


Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set
7 Crimping machine 1 Set

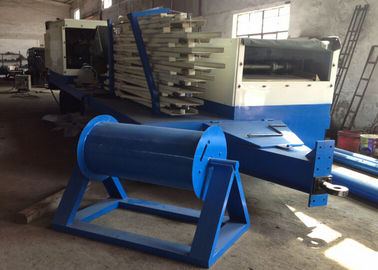

Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming


Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 13-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting


Type

bearing sliding type


Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision


Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker


Type

Manual



Auto(option)



Length 1.5m-2m 6m or 12m

PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan
