Product Details:
|
| Product Name: | Heavy Duty Gear Box Pallet Shelf Rack Roll Forming Machine Storage Shelf Pillar | Machine Speed: | 8-10m/min |
|---|---|---|---|
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| Life Time: | More Than 10 Years | ||
| High Light: | sheet metal roll forming machines,steel roll forming machine |
||
Heavy Duty Gear Box Pallet Shelf Rack Roll Forming Machine Storage Shelf Pillar
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
Hydraulic De-coiler-----------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching machine-------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Hydraulic punching device---------------------1set
Production support table-----------------------1set
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Width | 600mm | 800mm |
| Capacity | 5000kgs | 5000kgs-15000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |
PUNCH DEVICE WITH SERVO
Punching die material: Cr12 steel after treatment
Power: 5.5kw
Pressure: 63t
ROLL FORMING MACHINE
Material Thickness: 1.5-2.0 mm
Rollers: 18Groups
Material for Rollers: Gcr15 steel polished and coated with chrome HRC55-60°
Material for shaft: high grade No.45 steel after treatment
Diameter of shaft: 80mm
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 11 kw
Driven type: 2＂Chain
Cutting device
| Type |
Mould cutting |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working | Hydraulic type |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
RFQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

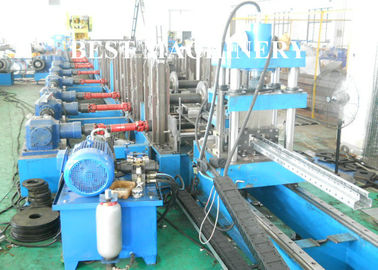

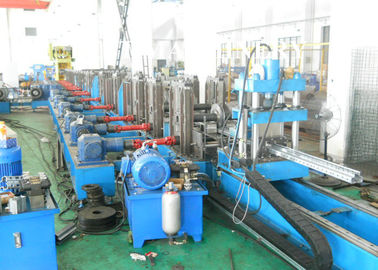

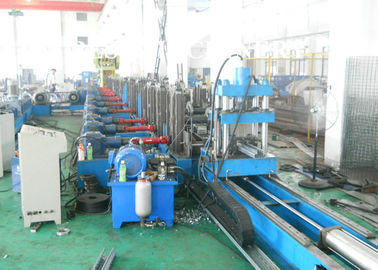

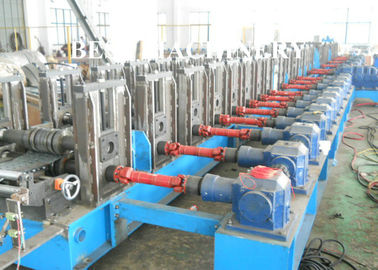

Machine Photos
