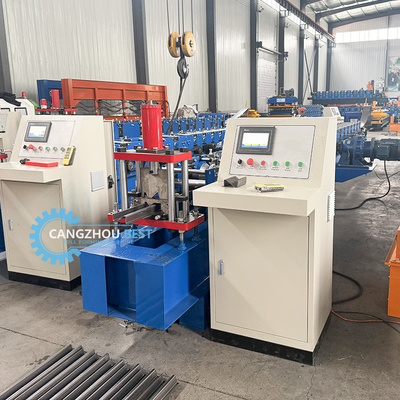

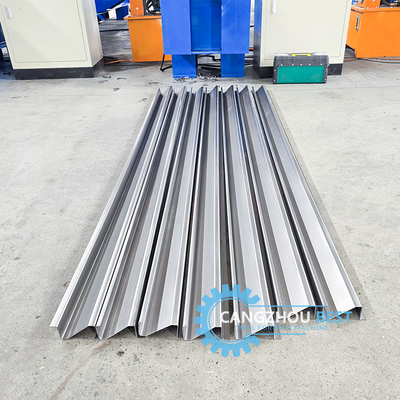

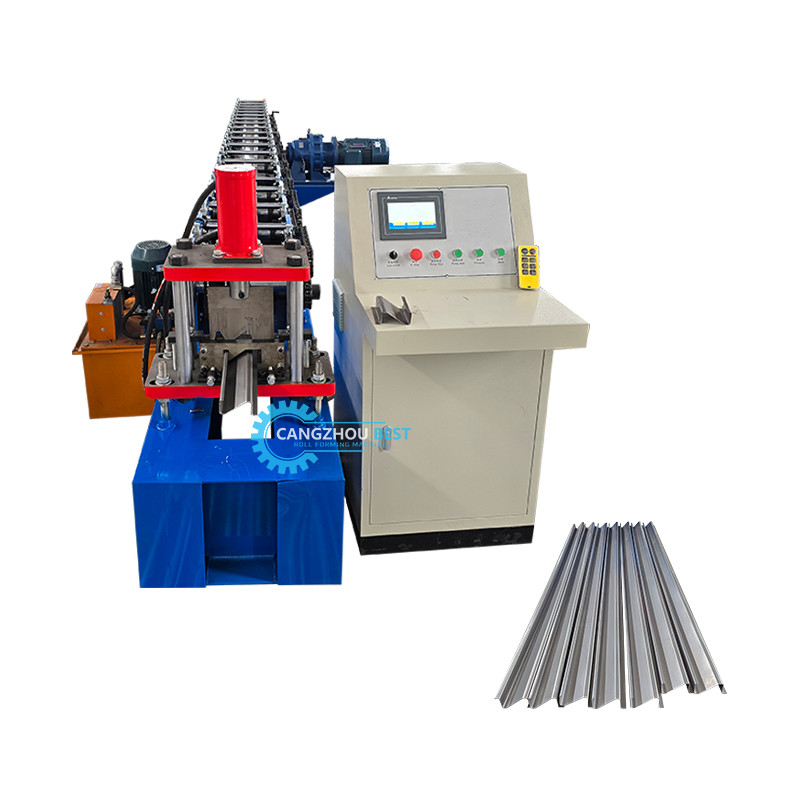

Upright System Customized Z Shape Contact Part Roll Forming Machine

Upright System Custozimed Z Shape Contact Part Roll Forming Machine ​

Working flow
Decoiler-----feeding ------roll forming --------cutting----output table

Machine Component

1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

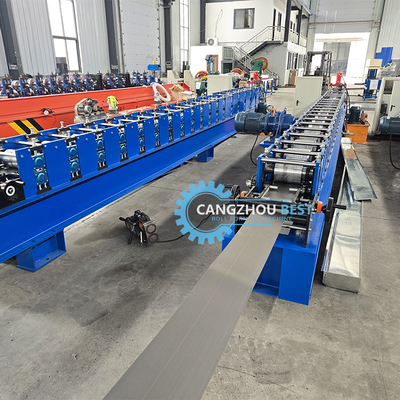

2. ROLL FORMING MACHINE
(1) Material Thickness: 1.2-2.0mm PPGI and GI

(2) NO. of roller Stations:18groups
(3) Material for Rollers: Cr 12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 80mm

(6) Frame panel: 20mm

(7) Bottom frame:steel tube welding
(8) Motor Power:7.5kw

(9)Driven type: chain

(10)Speed: 8-12m//min

3 CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment

(2)Hardness for Heat Treatment:HRC58 – 62°

(3)Cut-Off Type: Flying Cutter, cutting with non stop

(4)Motor for Hydraulic Stand: 3kw

4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase

(it depends on customer requirement)

5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

(3)Cooling fan

6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m
