Upright System Bracket C Channel Making Roll Forming Machine Customzied

Large Image : Upright System Bracket C Channel Making Roll Forming Machine Customzied

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY-30

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 15,000/ SET
Packaging Details:	plastic film for naked machine
Delivery Time:	50-60 days
Supply Ability:	5sets/ month

Contact Now

Upright System Bracket C Channel Making Roll Forming Machine Customzied

Description

Product Name:	Upright System Bracket C Channel Making Roll Forming Machine Customzied Machine	Material Thickness:	1-2.5mm
Driven System:	Chain Or Gear Box	Control System:	PLC
Warranty:	2 Years	Life Time:	More Than 10 Years
Color:	As Customer's Request	Power:	11-15kw
Highlight:	Upright System Bracket Roll Forming Machine , Bracket C Channel Roll Forming Machine , Customzied c channel rolling machine

Upright System Bracket C Channel Making Roll Forming Machine Customzied Machine

Machine Component

No.	Name	Qty
1	Decoiler	1set
2	Roll forming machine	1set
3	Cutting device	1set
4	Control box	1set
5	Hydraulic oil pump	1set
6	Output table	1set

Decoiler

Inner Diameter: Φ500 – Φ550 mm
Out Diameter: 500 mm
Max. Loading Capacity: 5000 kg
Type: manual

roll forming machine
Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 1-2mm
Rollers: 14Groups
Material for Rollers: GCr15 steel after treatment
Hardness for Heat Treatment: HRC55 – 60
Frame panel thickness: 20mm
Bottom frame: 350 H-section steel
Motor Power:7.5 kw
Driven type: Chain

PLC
Type: PLC Frequency Control System with double touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: Chinese and English
Voltage:380v 50hz 3phases(as customer requirement)

Hydraulic pump
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

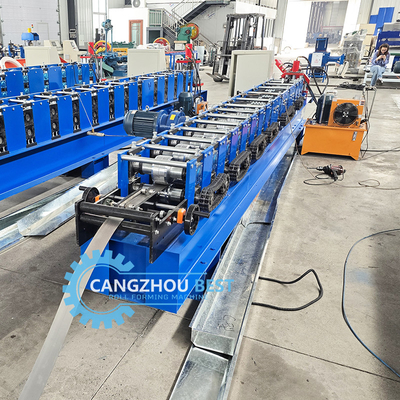

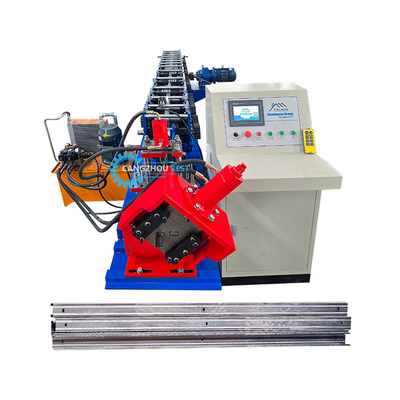

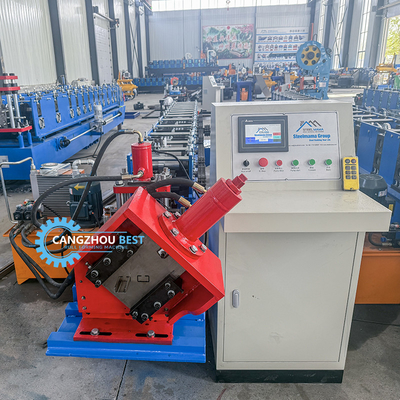

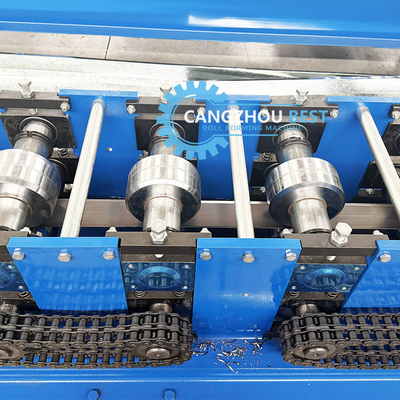

Machine Photos
