Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System

Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System
Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System

Large Image :  Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY980
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 20 sets/month

Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System

Description
Product Name: China EPS And Rockwool Sandwch Panel Production Line Manufacturer Color: Blue Or As Your Request
Machine Speed: 4-6m/min Machine Dimention: 25mx2.2mx2.5m
Machine Power: 22kw+7kw Driven System: Chain
Control System: PLC
High Light:

sandwich panel roll forming machine

,

sandwich panel making machine

Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System





Working flow



Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product



Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Laminating Machine 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set
7. Saw cutting device 1 Set


Parameter



The fully automatic sandwich panel roll forming machine is the best machine which can produce the color steel and EPS or rock wool composite board, which is also named sandwich panel machine. It is special machinery equipment using the pneumatic, electric and mechanical as a whole to produce the color steel heat preservation, sandwich panel.
The working speed uses the frequency conversion stepless speed regulation, and can composite the corrugated sandwich panel one-time.

The fully automatic sandwich panel roll forming machine use the full automatic control system with high integrated network, to achieve production information management, so as to make the automation system more advantageous, with the operation, maintenance, maintenance and mechanical debugging, mold replacement easily and so on.



1 Main moter power: 32KW
2 out line dimension of machine: 33m*2.5m*2.5m
3 Total weight: 10T
4 Processing speed: 0-5m/min
5 the thickness of upper steell plate: 0.3-0.8mm
6 the feeding width of upper steel plate: 1000/1200/1250mm
7 the thickness of lower steel plate: 0.3-0.8mm
8 the feeding width of lower steel plate: 1000/1200/1250mm
9 sandwich material: EPS/rock wool/PU/glass wool/foam
10 the thickness: 38-298mm
11 the width of stocket board: 950/1150mm
12 the width of H board: 1000/1200mm
13 the whole sandwich panel lien includes load car, up roll forming machine, down roll forming machine,roof corrugated roll forming imachine, roller unit,heat unit, glue nunit,double belt machine, saw belt cutter unit and production table
14. Material of main equipment:
(1) Roll material:high grade NO.45 forged steel,plate hard chrome on the surface of roller with thickness 0.05mm.
(2) Active shaft material:high grade No.45 carbon wrought steel at diameter 75mm
(3) Cutter blade:Cr12 mould steel with quenched treatment

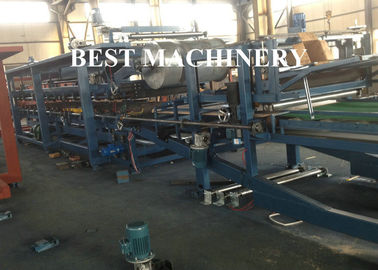

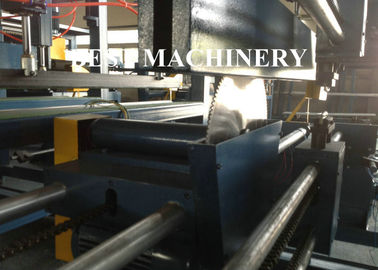

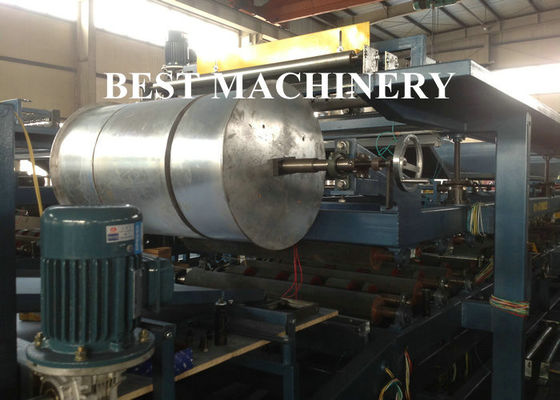

Machine Photos

Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System 0



Z Lock EPS Sandwich Panel Production Line Line Light Weight Chain Driven System 1





RFQ

1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2)Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit.ALIBAB’s Gold supplier with BV assessment and CE certificate.



4) Q: What can you do if the machine broken?

A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q: Can you be responsible for transport?

A: Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q: Can you supply the raw materials?

A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
