Product Details:
|
| Product Name: | Mineral Wool Board Panel Sheet Sandwich Panel Roll Forming Machinery | Cuting Type: | Saw Cutting |
|---|---|---|---|
| Machine Dimention: | 25mx2.2mx2.5m | Machine Power: | 22kw+7kw |
| Driven System: | Chain | Control System: | PLC |
| Highlight: | sandwich panel roll forming machine,sandwich panel production machinery |
||
Sheet Sandwich Panel Production Machinery Mineral Wool Board Saw Cutting Type
Product Description
The production line adopts advanced production technology to gas,electric and mechanical techmologis. It is processing color steel insulation board special machinery and equipment,working speed variable frequency stepless speed regulation,can one-time composite corrugated type material,and full set of production line is composted of the feeding machine purchase,forming mechanism,composite structure(embossing,glue,heating,composite,edge,slot,whole side,pneumatic and automatic cutting),is the production of industrial workshop,warehouse rooom wall panel and the indispensable equipment.
Working flow
Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Laminating Machine | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
| 7. | Saw cutting device | 1 Set |
Parameter
uncoiler
type of uncoiler:manual
material of coil:color coating coil
thickness of sheet:0.3~0.7mm
width of coil: 1000mm,1200mm
weight of coil:≤10 t
inside diameter of coil:480~520mm
apply guard film
type of apply guard film:automatic
into shearing
type of shearing:electrical shearing
driven power: 0.75 kw
forming machine
design of profile:see drawing attached
type of forming:one layer forming
stands of forming: 14 stands
roller diameter:¢72mm,¢80mm
material of roller: 45 steel heat treatment
thickness of chromic plating of roller surface:0.05~0.06mm
speed of forming:0~6.0m/min synchronies with panel machine
type of synchronies:electrical synchronies
driven power: 3.0 kw
size of forming machine:11000×2200×2200mm
weight of forming machine:~8t
RFQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

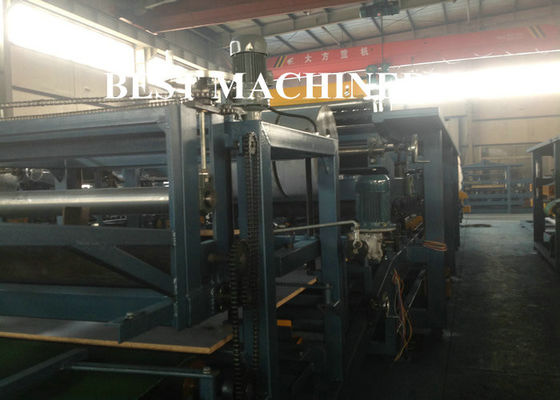

Machine Photos
