Glasswool / Rock Wool Sandwich Panel Production Line EPS Board

Glasswool / Rock Wool Sandwich Panel Production Line EPS Board
Glasswool / Rock Wool Sandwich Panel Production Line EPS Board Glasswool / Rock Wool Sandwich Panel Production Line EPS Board Glasswool / Rock Wool Sandwich Panel Production Line EPS Board Glasswool / Rock Wool Sandwich Panel Production Line EPS Board

Large Image :  Glasswool / Rock Wool Sandwich Panel Production Line EPS Board

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 20 sets/month

Glasswool / Rock Wool Sandwich Panel Production Line EPS Board

Description
Product Name: Glasswool Sandwich Composite Panel Roll Forming Machine EPS Rockwool Color: Blue Or As Your Request
Machine Speed: 4-6m/min Machine Dimention: 25mx2.2mx2.5m
Driven System: Chain Control System: PLC
High Light:

sandwich panel production machinery

,

sandwich panel making machine

Glasswool / Rock Wool Sandwich Panel Production Line EPS Board

Working flow

Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product

Machine components



No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Laminating Machine 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set
7. Saw cutting device 1 Set


Parameter

The fully automatic sandwich panel roll forming machine is the best machine which can produce the color steel and EPS or rock wool composite board, which is also named sandwich panel machine. It is special machinery equipment using the pneumatic, electric and mechanical as a whole to produce the color steel heat preservation, sandwich panel.
The working speed uses the frequency conversion stepless speed regulation, and can composite the corrugated sandwich panel one-time.

The fully automatic sandwich panel roll forming machine use the full automatic control system with high integrated network, to achieve production information management, so as to make the automation system more advantageous, with the operation, maintenance, maintenance and mechanical debugging, mold replacement easily and so on.

Technique parameters of the processing line

(1) Coil material: EPS, rock wool, glass silk floss and so on
(2) Thickness of the plate: 0.3-0.8mm
(3) Core thickness: 20-300mm
(4) Production capacity (according to your glue):
4-4.5m/min (the fastest), 2-2.5m/min(the slowest)
(5) Total power: about 30KW
(6) Weight: 25ton
(7) PLC control systerm, easy to operate, high precision and work stably.
(8) Dimensions of whole production line:
About Length45000mm × Width3600mm × Height3300mm



Packing Method

Main machine is nude; the computer control box is packed by carton box

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Delivery Time

Within 60 days after receiving deposit



RFQ

Standard export packing: plastic paper or wrapped with film, etc. (or Customization)

Q: Are you a trading company or a manufacture factory ?
A: Our factory is China's largest manfuacturer of EPS / PU / Rock Wool Machine Production Lines .
(Professional experienced manufacturer since 1987, BV Certification & CE & ISO9001.)

Q: Can your factory customize the machine for clients ?
A: Yes, we can.

Q: What is your payment terms ?
A: Normally, 30% as the deposit first by T/T, the rest 70% will be paid before shipping by T/T.

Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.

Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.

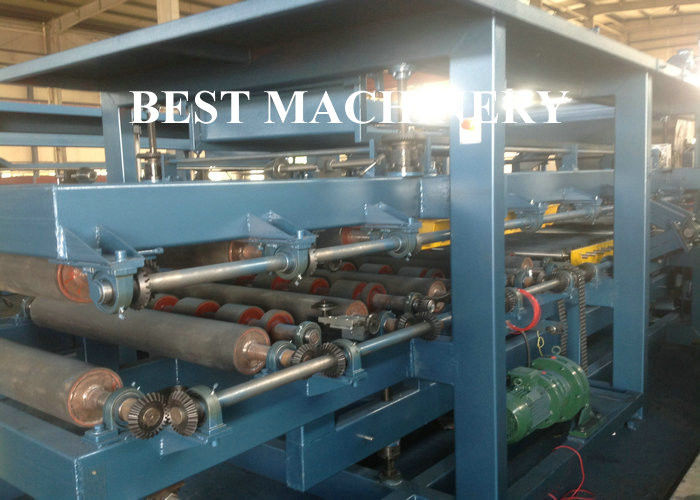

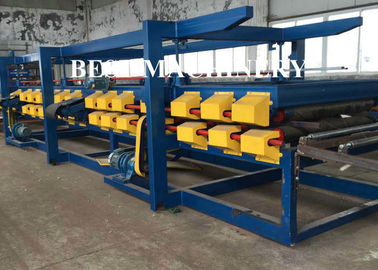

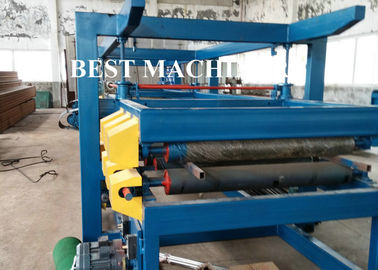

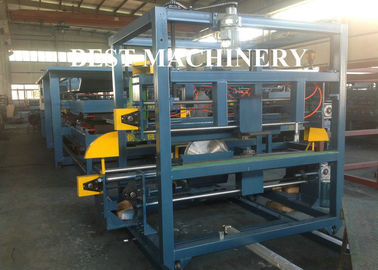

Machine Photos

Glasswool / Rock Wool Sandwich Panel Production Line EPS Board 0

Glasswool / Rock Wool Sandwich Panel Production Line EPS Board 1

Glasswool / Rock Wool Sandwich Panel Production Line EPS Board 2
