Product Details:
|
| Product Name: | 970 Mineral Rock Wool Sandwich Panel Roll Forming Machine / Glass Wool Roofing | Cuting Type: | Saw Cutting |
|---|---|---|---|
| Machine Speed: | 4-6m/min | Machine Dimention: | 25mx2.2mx2.5m |
| Machine Power: | 22kw+7kw | Driven System: | Chain |
| Control System: | PLC | ||
| High Light: | sandwich panel production machinery,sandwich panel making machine |
||
Glass Wool Roofing Roll Forming Machine 970 Mineral Rock Wool Sandwich Panel
Product Description
The production line adopts advanced production technology to gas,electric and mechanical techmologis. It is processing color steel insulation board special machinery and equipment,working speed variable frequency stepless speed regulation,can one-time composite corrugated type material,and full set of production line is composted of the feeding machine purchase,forming mechanism,composite structure(embossing,glue,heating,composite,edge,slot,whole side,pneumatic and automatic cutting),is the production of industrial workshop,warehouse rooom wall panel and the indispensable equipment.
Working flow
Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Laminating Machine | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
| 7. | Saw cutting device | 1 Set |
Parameter
| Description | Specification |
| Main moter power | 33KW |
| out line dimension of machine | 33m*2.5m*2.5m |
| Total weight | 10T |
| Processing speed | 0-5m/min |
| the thickness of upper steell plate | 0.3-0.8mm |
| the feeding width of upper steel plate | 1000/1200/1250mm |
| the thickness of lower steel plate | 0.3-0.8mm |
| the feeding width of lower steel plate | 1000/1200/1250mm |
| material | EPS |
| the thickness | 38-298mm |
| the width of stocket board | 950/1150mm |
| the width of H board | 1000/1200mm |

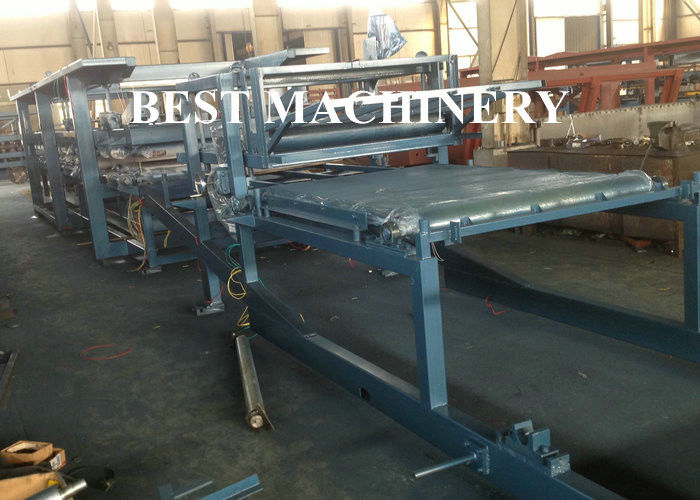

Machine Photos
RFQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
