Product Details:
|
| Product Name: | Precast EPS / Rock Wool / PU Sandwich Wall Panel Making Machine Auto Cutting | Cuting Type: | Saw Cutting |
|---|---|---|---|
| Machine Speed: | 4-6m/min | Machine Dimention: | 25mx2.2mx2.5m |
| Machine Power: | 22kw+7kw | Driven System: | Chain |
| High Light: | sandwich panel production machinery,sandwich panel making machine |
||
Wall EPS / PU Sandwich Panel Production Line Precast Auto Cutting
Introduction of Continuous Sandwich Panel Production Line
Continuous Sandwich Panel Production Line. It has shorted the trail production cycle ,improved the productivity by about 20—30%,and reduced the waste rate .We not only supply advanced facility ,but offer entire panel production technology .For the service requirements that during fixing ,debugging ,trail producing and using process ,we will offer technology suggestion and professional solution on time.
Advantages of Continuous Sandwich Panel Production Line
Firstly, we have more than 20 years PU sandwich panel experiences, master a full set of production technology, meanwhile we are top three on term of PU sandwich panel in china.
Secondly, we not only provide customer production line but also provide a complete solution for PU sandwich panel technology. Recovering customer's initial investment with the least raw materials.
Third, our company be mainly aimed at high and middle grade market, the quality of raw material we use is higher than normal seen.
Fourth, where the rotation axis between holes, are equipped with self-lubrication properties of materials bush for improving self lubrication of parts and prolong its life.
Working flow
Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Laminating Machine | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
| 7. | Saw cutting device | 1 Set |
Parameter
| 1 | Name | EPS Sandwich Panels Machinery |
| 2 | panle profile | 960mm,970mm or 980mm |
| 3 | Coil material | EPS or Rockwool |
| 4 | Thickness of the plate | 0.27-0.8mm |
| 5 | Core thickness | 30-300mm |
| 6 | Production capacity | 4-4.5m/min (the fastest) ,2-2.5m/min(the slowest) |
| 7 | Total power | about 28KW |
| 8 | Weight | 20 ton,two 40-foot HQ |
| 9 | control system | PLC control system, easy to operate, high precision and work stably. |
| 10 | Dimensions of whole production line | about Length34000mm × Width2500mm × Height2500mm |
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.

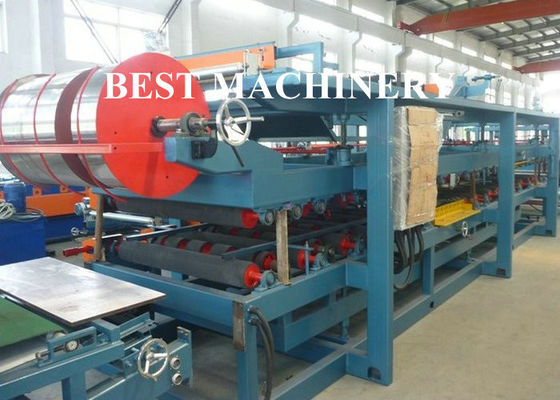

Machine Photos
