8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret

8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret
8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret 8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret 8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret 8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret

Large Image :  8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY49-334-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret

Description
Product Name: Decking Floor Production Roll Forming Line For The Structure Conceret Machine Speed: 8-12m/min
Machine Dimention: 11.5mx1.4mx1.4m Driven System: Chain Or Gear Box
Control System: PLC Life Time: More Than 10 Years
High Light:

cold roll forming machine

,

sheet roll forming machine

8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret



Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set





Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

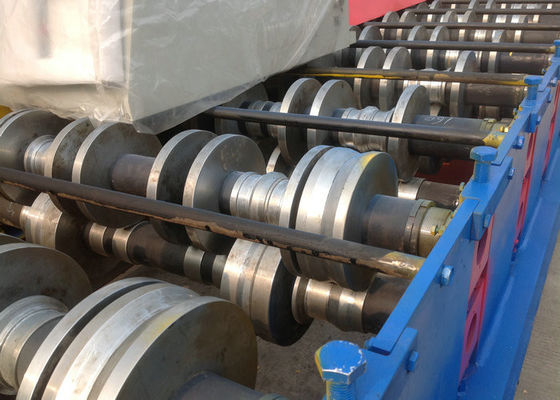

roll forming


(1) Rolled Material: Cold Rolled Steel Sheet
(2) Material Thickness: 0.7-1.5mm
(3) Rollers: 28 Groups
(4) Material for Rollers: #45 steel after treatment

(5) Material for shaft: 45 #steel after treatment

(6) Hardness for Heat Treatment: HRC55 – 60

(7) Diameter of shaft: 80mm

(8) Frame panel thickness: 20mm

(9) Bottom frame: 36# H-section steel
(10) Motor Power: 22 kw
(11) Rolling Speed: about 8 m / min

(12) Driven type: 2"Chain



Cutting


Type

bearing sliding type
8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret 0

Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision
8m/min - 12m/min Floor Deck Roll Forming Machine For structure Conceret 1

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker


Type

Manual



Auto(option)



Length 1.5m-2m 6m or 12m

PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan




FAQ



1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2) Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.



4) Q:What can you do if the machine broken?

A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q:Can you be responsible for transport?

A:Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q:Can you supply the raw materials?

A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
