Product Details:
|
| Product Name: | Light Medium Heavy Duty Upright Roller Rack Roll Forming Machine | Machine Dimention: | 9mx1.5mx1.5m |
|---|---|---|---|
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| High Light: | sheet metal roll forming machines,steel roll forming machine |
||
Sheet Metal Roll Forming Machines Light Medium Heavy Duty Upright Roller
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| Punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 se |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 600mm | 800mm |
| Capacity | 5000kgs | 5000kgs-15000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |

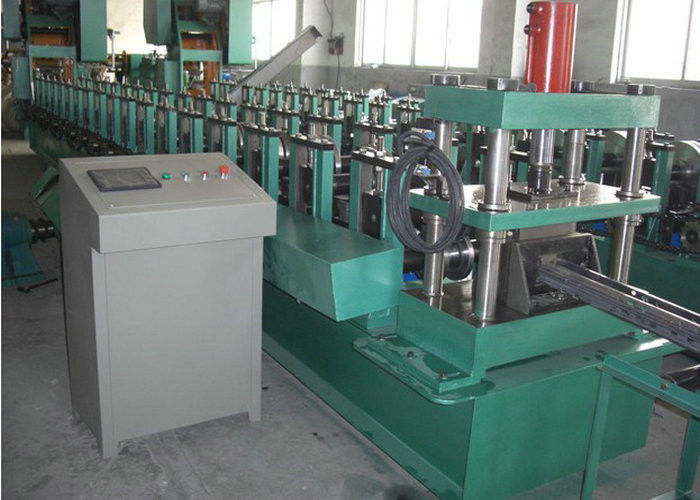

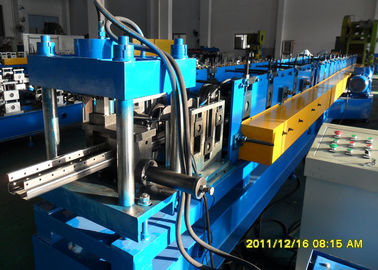

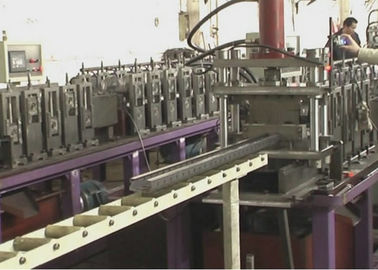

roll forming machine
| Item | Parameter detail | ||||||
| Processing Material | GI and Black Coils | ||||||
| Material thickness | 1.5-3mm(standard), 2-4mm(customized) | ||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||
| Machine siding panel |
| ||||||
| Forming stations | 14-18 stations (according to the material thickness) | ||||||
| Machine rollers | high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm | ||||||
| Machine Shaft | φ80-100mm high garde No.45 steel after treatment, | ||||||
| Machine spacers | CNC lathing in high-precision and wire-electrode cutting | ||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||
| Driving system | 2 inch chain or gear box(option) | ||||||
| Machine power | 11kw-15kw(according to the size and thickness) | ||||||
| Machine working speed | without punching:8-12m/min or 10-30m/min(option) | ||||||
| Machine testing method | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Punching device
| Item | Parameter detail |
| Photo | |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |
Cutting device
| Type | Mould cutting |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual | Auto(option) |
| Length | 2pieces, length is adjustable | according to your requirement |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q:What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
