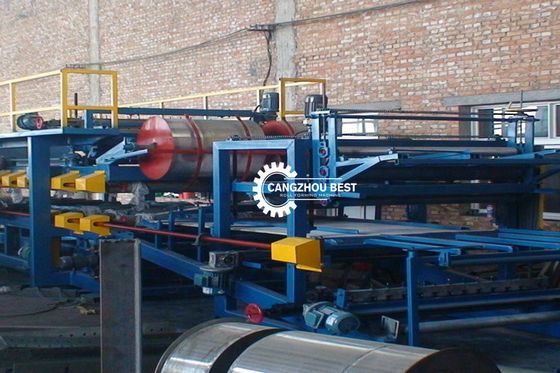

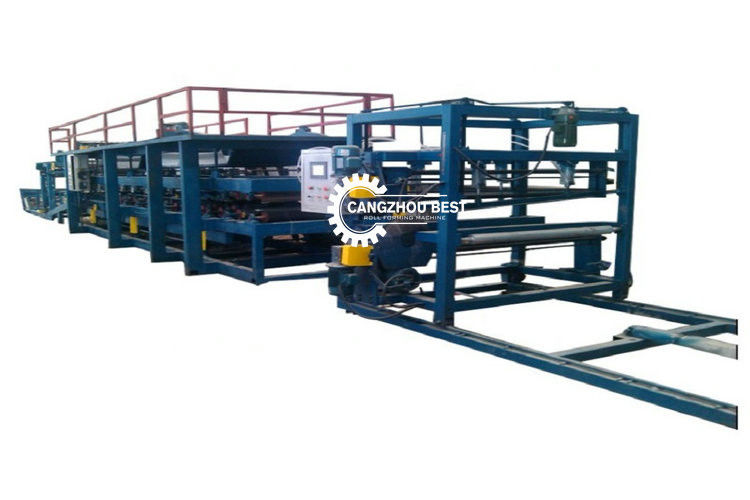

Construction Partition Wall Board Eps Sandwich Panel Machine

Construction Partition Wall Board Eps Sandwich Panel Machine
Construction Partition Wall Board Eps Sandwich Panel Machine Construction Partition Wall Board Eps Sandwich Panel Machine

Large Image :  Construction Partition Wall Board Eps Sandwich Panel Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$20000---30000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Construction Partition Wall Board Eps Sandwich Panel Machine

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Color: As Your Request Type: Fully Automatic
Certification: CE ISO SGS BV Raw Material: Steel
High Light:

Construction eps sandwich panel machine

,

eps Partition Wall Board machine

,

8m/min Eps Sandwich Panel Machine

Sandwich Panel Roll Foriming Machine Line consists of:

Uncoiler----Color Steel Forming Machine------ Gluing System------ Main Composite Machine-------Automatic Tracking Cutting System -------- Elevator System------ Controlling System

Color Steel Forming Part
1). roller station: 14
2).material of roller:45#steel
diameter of roller:Φ80mm
3).rolling mould: two sets
blade: two sets
material of blade:Cr12
4).main motor power:4.0Kw(Tai Wan Delta frequency converter or as per customers requirement)
5).forming speed:0-8m/min
6) sprocket: P-25.4
7) thickness: less than 1mm
8) dimension:8500mm*1500mm*1400mm

Gluing System

1).glue pump power:1.5KW
2).two Sets
3).glue pump : 2Sets

Elevator System
Controlling System
PLC (Tai Wan Delta) (or as per the customers requirement)



Annual output

(m2)

Quantity of moulding cars

(set)



Workers required



Prodction area

(m2)

Stacking area

(m2)

100,000 5 8-13 500 1,000
200,000 8 10-18 600 2,000
300,000 10 12-20 700 3,000
400,000 11 15-23 800 4,000
500,000 12 18-28 900 5,000
600,000 13 22-32 1000 6,000
700,000 14 25-35 1,100 7,000
800,000 15 28-38 1,200 8,000
900,000 16 32-42 1,300 9,000
1,000,000 17 35-46 1,400 10,000
Remarks



The parameters above in only for your reference.

Name Main Components

Overall Dimensions

(Length x Width x Height)

3180x1380x3480mm
Weight 2800KG
Mobie Power(KW) 2.2
Mobie Speed(m/min) ≤60
Main Components Host Chassis assembly (powder device),former stands, after stands, after plate,rod
Accessories Pressing Plate, side mould
Production Information

Thickness

(mm)

Width

(mm)

Length

(mm)

Quantity

(pcs/set)

Area

(m2/set)

Raw Material

(m3)

60 610 2270 60 83.0 4.15
75 610 2270 50 69.2 4.50
90 610 2270 42 58.1 4.65
100 610 2270 40 55.3 4.98
120 610 2270 34 47.0 5.17
150 610 2270 28 38.7 5.42
180 610 2270 22 30.4 5.77
Remarks

1. Two ranistion car production line conversion use, One set cheer machine, spray release agent use, Pour table, track.

2. The height of the mould can be customized by customers specific requirements.



EPS Rockwool Sandwich Panel Machine Production Line
Manual decoile
1).Material coil inner diameter: 450mm-550mm
2).Outer diameter:1500mm
2).Max coil width:1250mm
3).Carrying capacity: 5T
Forming device
1)Shaft material:high grade No.45 steel after treatment
2)Out diameter is80 mm
3)Roller material: 45# steel polished and coated with chrome HRC55-60°
4)Forming speed:8-15m/min
5)Main motor power:3 kw
6)Roller station:16stations
7)Coil width: 1000/1200/1250mm
8)Effective width:950/1150mm
9).Voltage:380v,50Hz,3 phase
Hydraulic cutter
1). material of blade: Cr12 mould steel with quenched treatment 55-60°C
2). cutting system: adopt advanced hydraulic drive, after forming automatic cut,no distort, no wasting , high safe factor.(main motor stop cutting)
Control system
1.)Type: PLC Frequency Control System with touch screen
2).PLC Brand: Delta
3).Encoder Brand: Omron
4).Screen: Delta test screen
5).Automatic length and quantity measurement
6).Control station is used to control product length and quantity, automatically cutting to length and stop when required quantity is achieved.
7).Length Error: ±2mm, error is easy to adjusted.
Outpur table
It is simple and used to load finished product.
Length:6m
Spare Parts
1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs

Construction Partition Wall Board Eps Sandwich Panel Machine 0
