Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size

Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size
Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size

Large Image :  Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY90-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 50-60 days
Supply Ability: 10sets/month

Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size

Description
Product Name: Goods Shelf Rack Beam Roll Forming Machine Passed CE & SGS Cerfitificate Machine Speed: 8-10m/min
Driven System: Chain Or Gear Box Control System: PLC
Cutting Type: Hydraulic Warranty: 2 Years
Life Time: More Than 10 Years
High Light:

sheet metal roll forming machines

,

upright roll forming machine



Goods Shelf Rack Beam Roll Forming Machine Passed CE & SGS Cerfitificate



Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component

Hydraulic De-coiler-----------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching machine-------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Hydraulic punching device---------------------1set
Production support table-----------------------1set

Decoiler



Type Manual type(standard) Hydraulic type(option)
Width 600mm 800mm
Capacity 5000kgs 5000kgs-15000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm


PUNCH DEVICE WITH SERVO

Punching die material: Cr12 steel after treatment
Power: 5.5kw

Pressure: 63t

ROLL FORMING MACHINE
Material Thickness: 1.5-2.0 mm
Rollers: 18Groups
Material for Rollers: Gcr15 steel polished and coated with chrome HRC55-60°

Material for shaft: high grade No.45 steel after treatment
Diameter of shaft: 80mm
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 11 kw

Driven type: 2"Chain

Cutting device


Type

Mould cutting

Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working Hydraulic type


PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request

Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase


Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request

Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan



Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.





RFQ



Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.

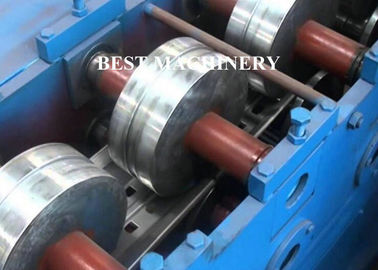

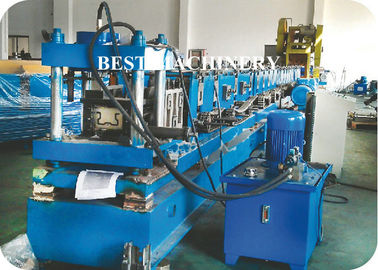

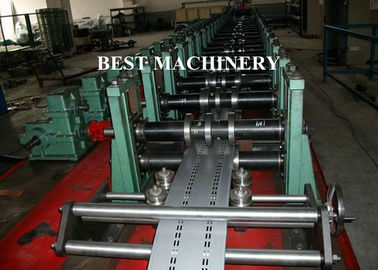

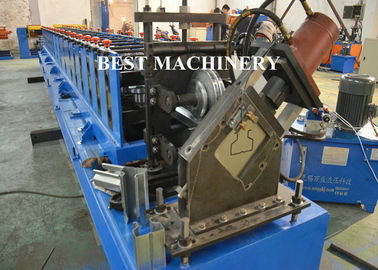

Machine Photos

Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size 0

Hydraulic Galvanized Steel Profile Goods Shelf Rack Roll Forming Machine Adjustable Change Size 1
