Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ

Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ
Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ

Large Image :  Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: YX1025
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard
Delivery Time: 45days
Supply Ability: 15sets/month

Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ

Description
Name: Metal Building Hydraulic Deck Floor Roll Forming Machine Speed: 10m/min
Coild Width: 1220mm Effective Width: 1025mm
Material Thickness: 0.6-1.2mm Machine Color: As Request
Control System: PLC Control PLC Brand: Delta
Touch Screen: Siemens Voltage: 380v
High Light:

cold roll forming machine

,

sheet roll forming machine

Professional Metal Building Hydraulic Deck Floor Roll Forming Machine

Machine components:

De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Pressing die---------------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set

1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8 mm PPGI and GI

(2) NO. of roller Stations:28groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm
(6) Frame panel thickness:14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw

(9)Driven type:0.6"Chain
3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

5. HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

PLC Oil pump

6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m


Spare parts
Chain x 1, bearings x1, limit switch x1

Working conditions
1.working size20m x 5m x 4m
2.Power supply6kw
3.Frequency50-60HZ
4.Wires/cables4-6mm²(length according to workshop)
5. Labor cost2 workers
6. ToolsSpanners and screwdriver
7.Lift device3-5t forklift or crane


Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

Our Service

Before sale service: You can contact us ask any questions you want to know about our machine, we will provide perfect answer to solve all your doubt.
On sale service: Once the business begin, we will provide the pictures and videos to let you understand the situation of your machine during our production.
After sale service: We can teach and train your worker/ technician how to install and operate the machine face to face; if cant, our user manual and video also can let you learn how to install and operate easily. If necessary, we also can arrange our engineer to customers factory to provide technical support.

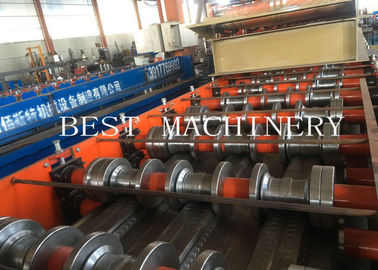

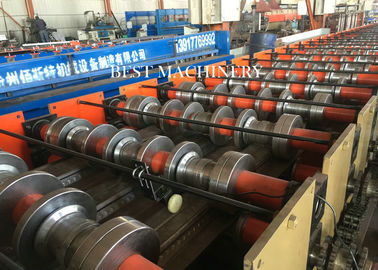

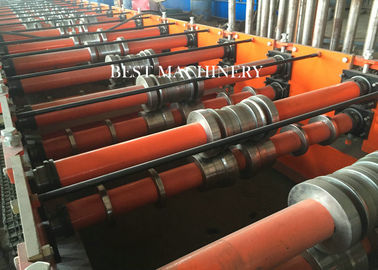

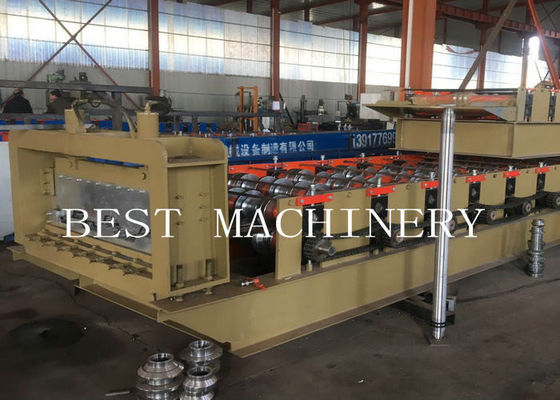

Machine Photo
 Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ 0Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ 1

Metal Building Hydraulic Floor Deck Sheet Roll Forming Machine 6kw 50-60HZ 2
