1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine

1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine
1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine 1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine 1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine 1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine

Large Image :  1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE.ISO
Model Number: CHBEST-960
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD+8000+SET
Packaging Details: Standard
Delivery Time: 35days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month

1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine

Description
Name: Floor Decking Sheet Steel Automatic Roll Forming Machine Supplier Color: As Yourrequire
Material: GI Control System: PLC
Shaft Material: 45# Steel Warranty: 2 Year
High Light:

panel roll forming machine

,

cold roll forming machine

1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine



Machine Componet

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set



Decoiler

Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs

Type: Manual Or Hydraulic (Optional)

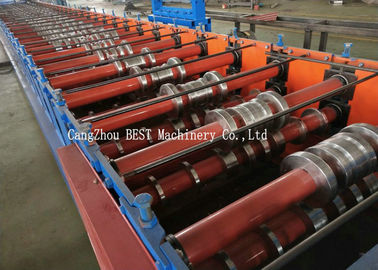

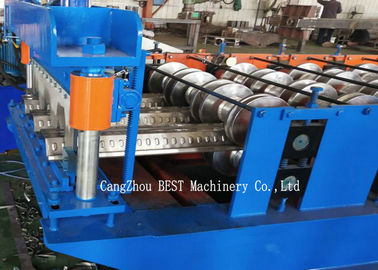

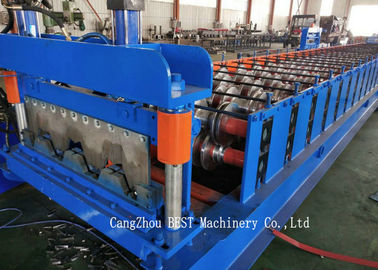

Roll Forming Machine

Material Thickness: 0.7-1.5mm

Rollers: 28groups

Material for Rollers: 45# steel polished and coated with chrome HRC55-60°

Shaft Diameter: 90mm

Frame panel thickness: 20mm

Bottom frame: 35# H-section steel

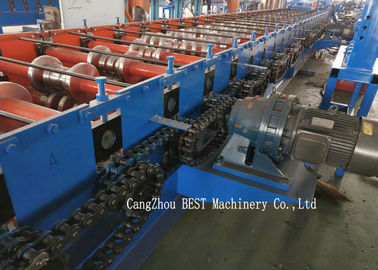

Motor Power: 2*11kw

Driven type: 2.0"Chain



Cutting Device

Type

Hydraulic, Automatic Cut-Off

Cutting Blade Material

Cr12 steel after treatment

Hardness for Heat Treatment:HRC55 – 60°

Power 4kw





Control System

Type

PLC Frequency Control System with touch screen

PLC Brand

Delta

Length Error

±2mm

Language

English and Chinese

Voltage

380v/50HZ, 3Phase





Hydraulic Pump

Power 3kw
Oil Type

46# hydraulic oil

Pump Brand China Brand



Output Table

Length: 6m

It is simple and used to load finished product.













Working Flow

Decoiler------feeding -------roll forming------cut to length-----output table

1250 Mm Max. Width With GI Material Steel Sheet Floor Deck Roll Forming Machine 0



Packing Detall

(1)

40 GP container ; main machine naked and fastened with iron wire in the container.

(2)

All Components Fixed by steel wire with Container.

(3)

electrics devices be packed with wooden box.for Standard export packing

(4)

rollers were painted with oil and packed with plastic film.





Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.



After-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.



Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. about 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
