Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design

Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design
Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design

Large Image :  Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY51-226-678
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month

Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design

Description
Product Name: Metal Sheet Floor Decking Roofing Roll Forming Machines With Embossing Rollers Design Color: Blue Or As Your Request
Control System: PLC Driven System: Chain Or Gear Box
Power: 22kw
High Light:

panel roll forming machine

,

cold roll forming machine



Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design



Machine Component List:



Name NO. Unit
1.De-coiler 1 set
2.Forming machine 1 set
3.Cutting device 1 set
4.PLC control box 1 set
5.Hydraulic pump station 1 set
6.Production support table 1 set



Processes flow:



Decoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table





Machine Detail Information



Manual Un-coiler



Max Capacity: 5000kgs

Inner diameter of coil: 400-600mm

Manual with brake

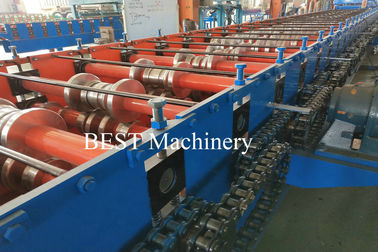

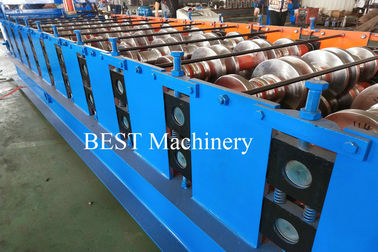

Auto Main Forming System

Width: According to Drawings
Height: According to Drawings
Thickness of sheet: According to Drawings
Material: GI sheet coil or Colored sheet coil
Motor Power: 18.5 kw forming system

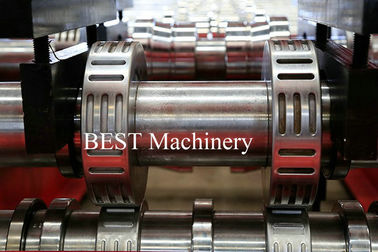

Roller material: C45 steel, chrome coated
Diameter of shaft: 110 mm
Transmission: by chain and gear
Measuring accuracy: +/- 0.5 mm/M
Base Frame: 400 H steel welded
The machine base is assembled and welded by high quality steel
Total Length of Machine: 11.8 m

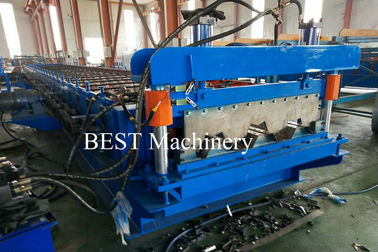

Hydraulic Cutting Device

Cutting way: pause to cut.
Blade Material: Cr12
Hydraulic power: 4 kw hydraulic system.
Hydraulic Station Structure: 300mm steel welded. Four guide columns.

Electrical System

Control system: HMI & PLC control panel.
Power: 440V 50Hz (as per local requirement)

Run-out Table

Frame: 8# steel groove welded
Roller type.
Quantity: 1 pc





Working conditions
1.working size 25m x 2m x 4m
2.Power supply 8.5kw
3.Frequency 50-60HZ
4.Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7.Lift device 3-5t forklift or crane



Service



Provide Pre-sales Consultant & On-purchase service 24 hr × 6 days per week



1. Reply within 24 hours



2. Provide relevant product information



3. Answer questions if request



4. Give technical suggestion





Provide After-sales service 24hr × 7days per week



1. Test the machine before shipment



2. Provide technical guidance relate to use the machine



3. Supply one-year warranty period for the machine



4. Provide the spare parts at cost price after warranty period



5. Collect the feedback for the machine working






Cangzhou BEST Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of all kinds of roll forming machine. We are located in Cangzhou, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.



Profile Drawing



Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design 0



Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design 1

Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design 2
