Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier

Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier
Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier

Large Image :  Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-750
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD25500-35500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier

Description
Name: Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier Condition: New
Voltage: 380v Production Capacity: 6-8m/min
Warranty: 2years Place Of Orgin:: Hebei,China
Power: 15kw Weight: 11t
High Light:

panel roll forming machine

,

cold roll forming machine

Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier





1. Main Features:

1) Guarantee/Warranty: 2 years
2) Price: Lower price with higher quality.
3) Machine Performance: Low break down rates, with long life.
4) Prompt Delivery: Short delivery time.
5) Quality : High quality get the approval of the customers.
6) Service: Good after service to guarantee you use the machine normally and sell your products well.





2. Main technical parameter:

 DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs



ROLL FORMING MACHINE

(1) Material Thickness: 0.8-1.6mm

(2) Rollers: 28groups

(3) Material for Rollers: 45# steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade No.45 steel after treatment

(5) Diameter of shaft: 90mm



CUT-OFF DEVICE

(1) Material for Cut-Off Modular: Cr12 steel after treatment

(2) Hardness for Heat Treatment: HRC58-62°

(3) Cut-Off Type: Hydraulic, Automatic Cut-Off

(4) Power: 5.5kw



ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Length Error: ±2mm

(4) Language: English and Chinese

(5) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



PRODUCTION SUPPORT TABLE

(1) No power type
(2) Length: 2m



3. Machine components list:

Name NO. Unit
1.De-coiler 1 set
2.Forming machine 1 set
3.Cutting device 1 set
4.PLC control box 1 set
5.Hydraulic pump station 1 set
6.Production support table 1 set




4. Product Application

Metal Deck Roll Forming Machine is a modern, pre-eminent solution for concrete floor work. It roll-forms panels that replace traditional form-work, shortens 3 times working duration, saving 30% on concrete.
Field of application: Construction and building structure.
Application: Roll forming panels that are used as a floor replacement.
Installation of accessories & sub-floor structure is accomplished immediately after pouring concrete.





5. Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



6. Why choose us?

1. We can make and design all kinds of roll forming machine according to customer’s requests.
2. This is a very perfect and durable equipment. We have more than 20 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.



Photos for reference:

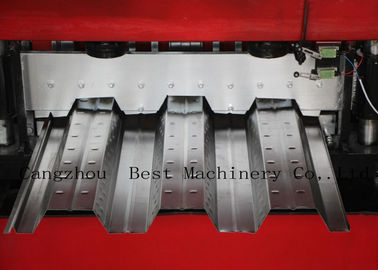

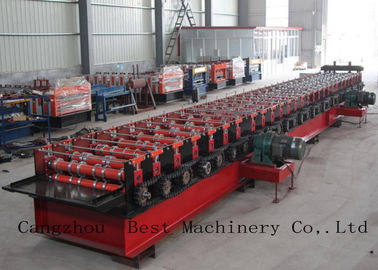

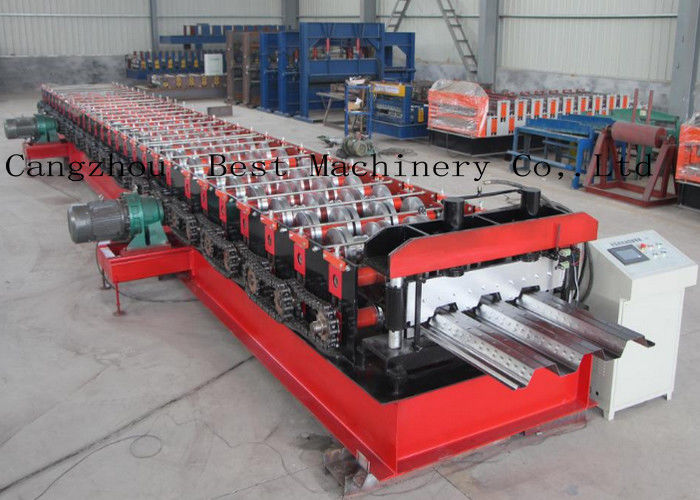

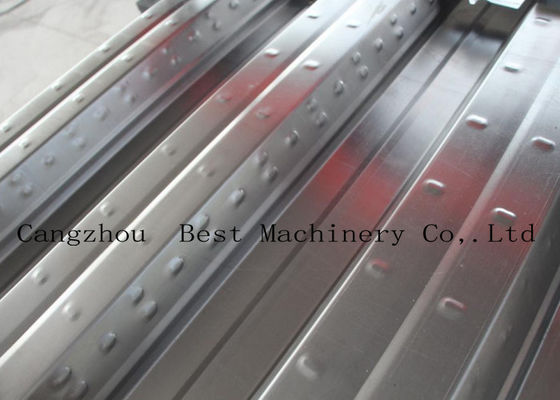

Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier 0



Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier 1Customized Metal Steel Deck Sheet Roll Forming Making Machine Supplier 2
