Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking

Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking
Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking

Large Image :  Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-750
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD25500-35500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20SETS/MONTH

Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking

Description
Name: Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking Condition: New
Warranty: 24months Customized: Yes
Production Capacity: 8-12m/min Power: 7.5kw
Control: PLC Place Of Origin: Hebei, China (Mainland)
Voltage: 380v Use: Roof Building
High Light:

panel roll forming machine

,

cold roll forming machine

Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking



1.Main parameters:

Technical parameters:
1 Name of commodity & specification Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking
2 Main motor power 7.5kw, 3 phase
3 Hydraulic motor power 5.5kw
4 Hydraulic Pressure 18-20MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 450mm H-Beam
8 Backboard Thickness 20mm
9 Chain Size 1.0
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-0.8mm
12 Feeding Width As your require
13 Effective width As your require
14 Productivity 8-10m/min
15 Roll Station 27
16 Roller Diameter 90mm
17 Roller material 45# steel
18 Cutter material Cr12 , quenched
19 Cr-Plating Size 0.05mm
20 Overall Size 15000×1200×1100mm
21 Total Weight 19T
22 Components

Manual Uncoiler-------------------1 set

Guiding Platform------------------1 set

Coil Strip Leveler------------------1 set

Main Machine of Roll Forming------1 set

Electric-Motor---------------------1 set

Cutting Device--------------------1 set

Hydraulic Station------------------1 set

PLC Control-----------------------1 set

Supporter Table-------------------1 set

23 Workflow

Manual decoiling----feeding and guiding----

roll forming----cut to length----run out table

24 Package nude in the container
25 Minimum order quantity 1 set
26 Payment terms

T/T(30% T/T pay in advance,

the remaining 70% pay before ship)

27 Delivery time 40 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.



2.Component:

NO.

Item

Unit

Qty

1

Manual decoiler

set

1

2

Main roll forming machine

set

1

3

PLC control box

set

1

4

Supporter table

set

1



3.Features of Floor Deck Roll Forming Machine:

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

We can also supply the customized machines.



4.Applications of Floor Deck Roll Forming Machine:

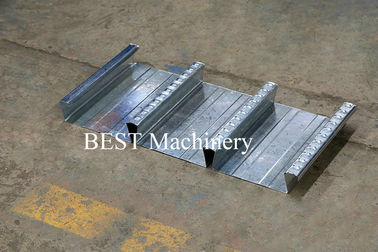

The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.

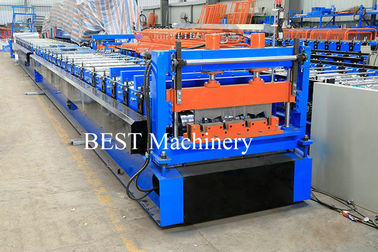

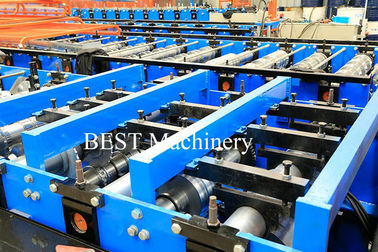

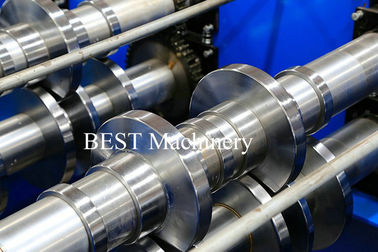

5.Machine photos:

Color Steel High Srength Metal Deck Floor Roll Forming Machine For Closed Floor Decking 0
