Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting

Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting
Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting

Large Image :  Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-70
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days

Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting

Description
Name: Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting Color: As Your Require
Bottom Frame: 350H Steel Warranty: 2 Year
Thickness: 0.6-1.2mm Power: 3kw
High Light:

cold roll forming machine

,

profile roll forming machine

                    Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting



Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
Multi Revising Device 1set
PLC Control System 1set
Hydraulic Pump 1set
Output Table 1set



Work Flow

Decoiler------feeding------roll forming------cut to length----multi-revising -----output table



Decoiler

Max. Width

300mm

Inner Diameter

450-550mm

Out Diameter

1000mm

Max. Loading Capacity

3000kgs
Type Manual Or Hydraulic



Roll Forming Machine

Material Thickness: 0.6-1.2mm PPGI and GI

NO. of roller Stations: 14 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness: 14mm

Motor Power: 3kw

Driven type: 1.0"Chain

Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 65mm

Speed:8-12m/min



Cutting Device

Type

Hydraulic, Automatic Cut-Off

Motor for Hydraulic Stand

3kw

Material for Cut-Off Modular

Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°





Multi Revising Device

Rollers: 1 group

Material for roller: 45# steel polished and coated with chrome HRC55-60°

Functon:it uses for revising the finished product to make the product straight.



PLC Control System

Type

PLC Frequency Control System with touch screen

PLC Brand

Delta

Encoder Brand

Omron
Length Error

±2mm

Voltage 380V/50HZ/3PHASE





Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand



Output Table

No power type
Length: 2m







Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.

Company Profile

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.

Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

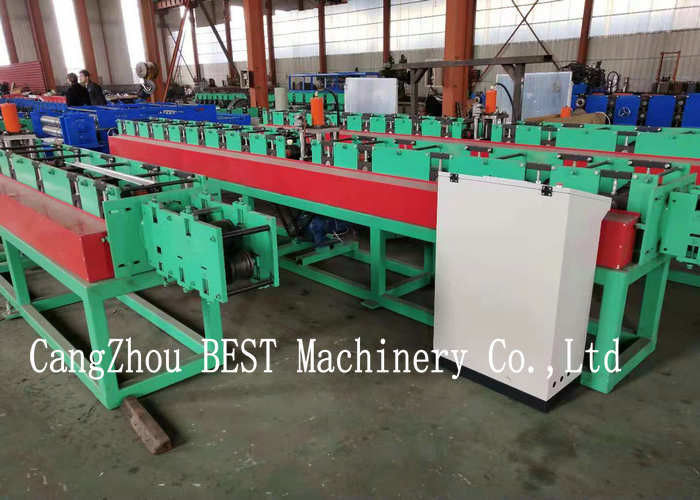

Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting 0

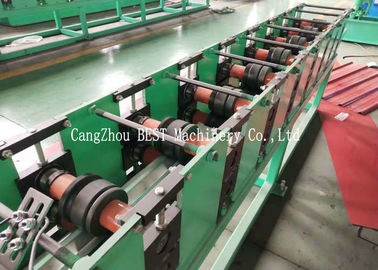

Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting 1

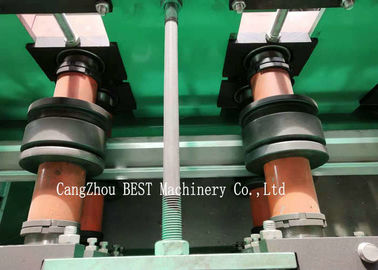

Roller Shutter Door Steel Making Roll Forming Machine Hydraulic Cutting 2
