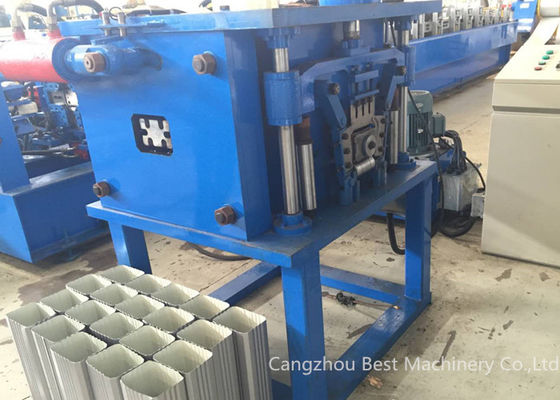

Product Details:
|
| Product Name: | Fully Automatic Square Downspout Pipe Cold Roll Forming Machine | Machine Dimention: | 9mx1.4mx1.4m |
|---|---|---|---|
| Driven System: | Chain Or Gear Box | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | downpipe roll forming machine,pipe roll forming machine |
||
The water downspout system is actually used to help the building to eliminate the accumulation of rainwater. Generally speaking, the roof of each building is particularly easy to collect rainwater. There is no place to arrange it, and the entire water system can solve this problem well. Big problem.
A complete water system consists of many components, gutters, downpipes and related components. The role of the rainwater pipe is to help the rainwater to smoothly remove the roof along the water pipe. The effect is very large. Therefore, in the construction of the water system, many problems must be considered, especially the downpipe.
It is necessary to consider the role of the downpipe of the roof. When it is arranged, it is necessary to consider the size of the water collecting area of the roof, as well as the overall structure and type of slope of the house. Before installation, the downpipe of our water system must meet the required number of houses, and the number of rainwater pipes is calculated according to the reasonable roof area.
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Bending machine---------------------------------1set
|
SPECIFICATIONS FOR ROLL FORMING MACHINE
|
|||
|
Main roll forming machine
|
Material of roller
|
|
High grade 45# forged steel plated with hard chrome plating
|
|
Working Speed
|
m/min
|
8-15
|
|
|
roller stations
|
station
|
16
|
|
|
Motor power
|
Main motor power
|
kw
|
5.5
|
|
Hydraulic Station Power
|
kw
|
3
|
|
|
Hydraulic Station Pressure
|
Mpa
|
12
|
|
|
Otehrs
|
Electrical Control System
|
PLC brand
|
Panasonic Japan
|
|
Material Thickness
|
mm
|
0.25-0.8mm
|
|
|
Cutting accuracy
|
mm
|
±2
|
|
Machine Parts
Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated
Main Features
Name:PLC
Brand: Panasonic Japan
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#
Main Features
Name: Encoder
Brand:OMRON
We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.
