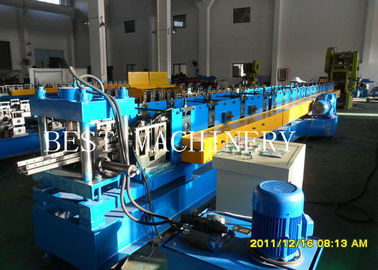

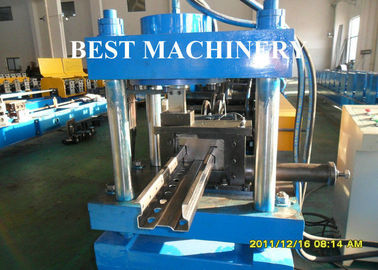

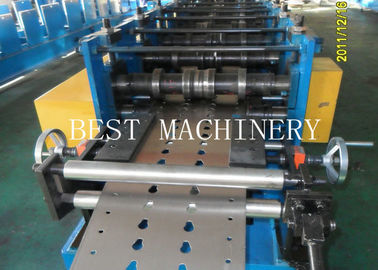

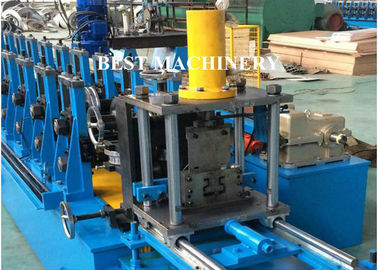

Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system

Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system
Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system

Large Image :  Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD21500-USD25500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 30-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month

Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system

Description
Name: Supermarket Storage Upright Shelves Rack Roll Forming Making Machine Condition: New
Material: Galvanized Control System: PLC Control
Color: As Your Request Place Of Origin: Hebei, China
Cutting Mode: Hydraulic Type Drive System: Chain
High Light:

sheet metal roll forming machines

,

steel roll forming machine

Supermarket Storage Upright Shelves Rack Roll Forming Making Machine





1. Working Flow



Decoiling --- leveling --- Servo feeding --- Punching Holes ---- Rollforming ----Cuting--- Finished Racks on Tables



2. Machine component

1 Decoiler 1 set
2 Auto Punching Machine 1 Set
3 Main Rollforming Machine 1 set
4 Straightening System 1 set
5 Hydraulic Station 1 set
6 Auto-Cutting system 1 set
7 PLC Control System 1 set
8 Run Out Table 1 set



3. Main parameters:

1 Material width As your regards
2 The effective width As your regards
3 The thickness of Coil 1.0-2.5mm or more
4 Application Upright Shelves Racking Panels
5 The overall dimensions 13 x 1 x 1.4 meters
6 Total weight 12 Tons
7 Main Power 15KW
8 Uncoiler Manual Uncoiler
9 Inner diameter 508-610mm
10 Outer diameter 1200mm
11 Loading weight 3 tons
12 Rollforming line speed around 10m/min
13 Forming steps 25 stations or more
14 Bracket welded with 36 # I-steel
15 Material of Shafts 45# steel with rough finished and then refined finished
16 Diameter of the Roll 80mm
17 Material of Rollers high quality Cr12 mould steel
18 Processing Technology quenching & tempering treatment
19 Material of Rack

complete welded structure of A3 steel plate 16mm

thickness

20 Transmission Transmitted by the chain-bracket/ Gearbox T180
21 Material of Chain 45#steel with heat treatment of HRC45-50°
22 Holders under chain for lubricant By the machine
23 Material of cutting blade Cr12 mould steel with quenching treatment 60-62
24 Cutting system Hydraulic Post-cutting
25 Voltage 380V/50HZ/3phase



4. Terms of Sales

Qutation Type FOB, CFR, CIF, C&F
Payment Method 30% paid by T/T as deposit; 70% paid by T/T before the shipment
Delivery Time 60 working days
Warranty One year from complete production line and 10 years for rollers
Spare Parts Supply Free loaded toagether with the machine



5. Advantages of Our Machines

Advantage
1) Full range of products: we can provide all kind of roll forming equipment which can be used to forming all kinds of shape as you required. The company can make non-standard products for client's requirement.
2) Specialized: There are specialized technical personnel and a list of experienced team responsible for quality assurance. Here are technical and skilled specialists, senior foreign trade staff and engineers.
3) Advanced and practical: For example, wall/ roof panel roll forming equipment solves the problem of roof leakage that conventional machine can not be able to handle with.
And also, the forming machines are national inspection-exempted products after external supervision and sampling inspection.
4) Professional and on time service:
As to pre-sale service, the company provides sample version for free. Well, that which party bears freight charges is consultative.
As to sales service, our company offers sales discounts and allowances to customers for the vulnerable parts. There is about 3-month delivery cycle from the beginning of orders. Foreign delivery cycle is almost the same as domestic one.
As to after-sale, there is one-year warranty period. During the warranty period, machine maintenance and repair will be provided for free.
What's more, our company can offer OEM business and provide simple for free for customers with our roll forming equipment and slitting line, cut to length line.



6. What is your problems for roll forming machine?

1) Does one machine can only produce one size?
Not exactly, it depends on the machine.
2) Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3) How to visit your company?
We can pick you up from Cangzhou Xi railway station
4) What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5) Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6) You are a trade company or factory?
We are a Manufacturer.
7) Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
8) Do you have overseas engineers?
Yes, we not only provide overseas engineers but also provide technical training.
9) Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.



7. After-sales service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, please write mail to me.



Machine photos:

Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system 0



Application:

Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system 1

Professional Rack Roll Forming Making Machine for Supermarket Storage Upright Shelves Chain Drive system 2
