Product Details:
|
| Product Name: | Steel Gavlanized South Africa Popular Palisde Fence Machine Roll Forming Machine | Machine Speed: | 4-6m/min |
|---|---|---|---|
| Machine Dimention: | 7.5mx1.8mx1.4m | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Warranty: | 2 Years |
| Life Time: | More Than 10 Years | ||
| High Light: | sheet metal roll forming machines,steel roll forming machine |
||

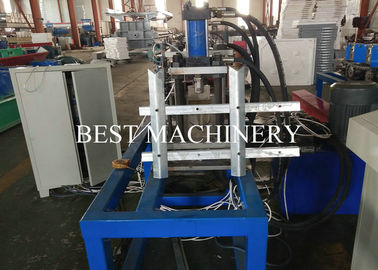

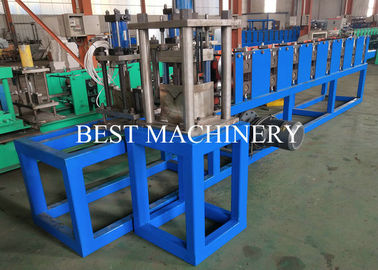

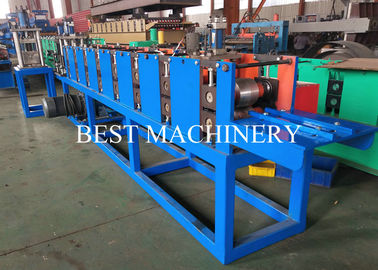

Steel Gavlanized South Africa Popular Palisade Fence Machine Roll Forming Machine
Working flow
Decoiler------leveling------guiding------roll forming -----cut to length-----output table----press machine
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 se |
Our Machine Advantage
1.Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine cotrolling by PLC computer controlling systerm.
5.Elegant apperance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.
Specifications
| tems | Specifications | |
| Material of coil | Material Thickness | 2.5-3mm |
| Main frame | Material | 350H-beam steel |
| Wall plate | welded steel plate | |
| Reducer | 8# cycloid reducer | |
| De-coiler | Weight | 3 ton manual decoiler |
| Roll Forming system | Rolling Speed | 0-12 m/min |
| Roller Stations | About 14 stations forming | |
| Roller Material | GCR15 steel with Hard chromium plated on the surface | |
| Diameter of shaft | 80 solid | |
| Shaft Material | 45# Steel Diameter 80mm shaft | |
| Maim Motor Power | 15 kw | |
| Hydraulic cutting Power | 5.5 kw | |
| Cutting | Material Of Cutting | CR12 with quench treatment |
| Tolerance | ±1mm | |
| Cutting blade | hydraulic shearing | |
| Electrical control system | Electric Source | 380V, 50HZ, 3phase |
| Control System | PLC(Delta) with touch screen | |
| Weight | About 6 tons | |
| Way Of Drive | By chain(2.0 inch) link bearing model 6210 | |
| Size of machine | 8.2m*1.2m*1.2m | |
Packaging: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts
Packed in plywood box. All Components Fixed by steel wire with Container.
Payment Terms: 30%T/T after signed the contract,balanced before delivery
Warranty
1).18months and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD100/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr
ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th
ings.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
