|Material Thickness:||0.7-1.5mm||Rollers:||28 Groups|
|Material for Rollers:||GCR 15 Steel Hardening And Coated With Chrome HRC55-60°||Material For Shaft:||90mm|
|Frame Panel Thickness:||20mm||Driven Type:||2.0＂Chain|
panel roll forming machine,
cold roll forming machine

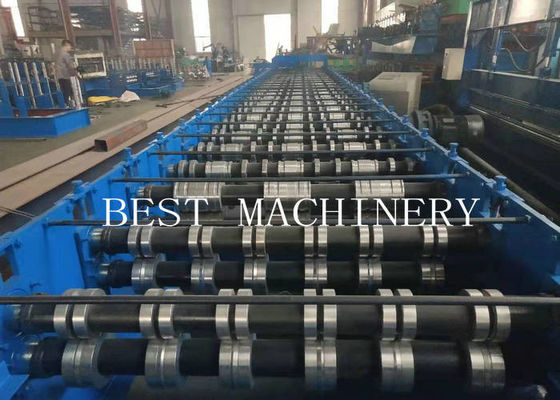

Steel Structural Floor Panel Sheet Metal Decking Machine
|Name of Roll Forming Machine||688 Floor Deck Roll Forming Machine Floor Tile Material Making Machine|
|Profile Drawing or Sample Picture|
|1||Suitable raw material||PPGI/PPGL/GI/GL Steel Coils|
|2||Thickness of coil sheet||0.3-0.8mm|
|3||Feeding Coil width||1000mm|
|6||Diameter of Soild shaft||70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway|
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,
hard chrome coated 0.05-0.07mm
|8||Thickness of middle plate||Guide pillar memorial archway|
|10||Drive type||By chain(1.0 inch) link bearing model 6210|
|11||Power of main motor||7.5kw with Cycloidal reducer, Lichao, Shanghai|
|12||Power of pump station||4kw, Lichao, Shanghai|
|13||Forming speed||About 15-20m/min|
|14||Hydraulic cutting||Controlled by PLC|
|15||PLC||DELTA, TAIWAN / Mitsubishi, Japan|
|16||Material of cutting blade||Cr12Mov, quenching 58-62℃|
It has the advantage of slowing down before cutting, to ensure the
length accuracy(±1mm, far better than industrial
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world. We guarentee your machine running well in order to make your business running well.
Q3. Do you sell only standard machines?
A3: No, customized service will be provided for all of our customers. Most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
