Product Details:
|
| Name: | Floor Decking Sheet Steel Automatic Roll Forming Machine Supplier | Color: | As Yourrequire |
|---|---|---|---|
| Material: | GI | Control System: | PLC |
| Shaft Material: | 45# Steel | Warranty: | 2 Year |
| High Light: | panel roll forming machine,cold roll forming machine |
||

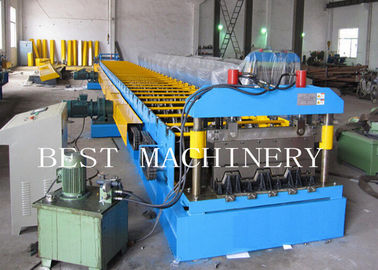

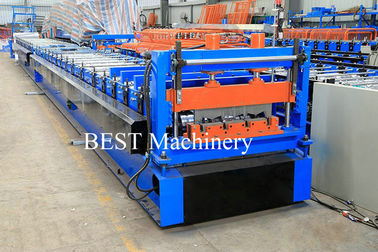

Floor Decking Sheet Steel Automatic Roll Forming Machine Supplier
Machine Componet
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| PLC Control Box | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Decoiler
Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs
Type: Manual Or Hydraulic (Optional)

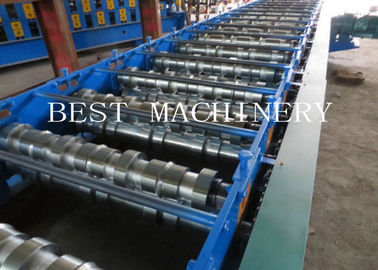

Roll Forming Machine
Material Thickness: 0.7-1.5mm
Rollers: 28groups
Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
Shaft Diameter: 90mm
Frame panel thickness: 20mm
Bottom frame: 35# H-section steel
Motor Power: 2*11kw
Driven type: 2.0＂Chain

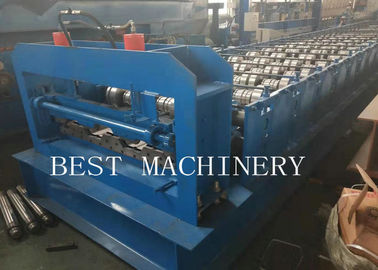

Cutting Device
| Type |
Hydraulic, Automatic Cut-Off |
| Cutting Blade Material |
Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60° |
| Power | 4kw |
Control System
| Type |
PLC Frequency Control System with touch screen |
|
PLC Brand |
Delta |
|
Length Error |
±2mm |
|
Language |
English and Chinese |
| Voltage |
380v/50HZ, 3Phase |
Hydraulic Pump
| Power | 3kw |
| Oil Type |
46# hydraulic oil |
| Pump Brand | China Brand |
Output Table
Length: 6m
It is simple and used to load finished product.
Working Flow
Decoiler------feeding -------roll forming------cut to length-----output table
Packing Detall
| (1) |
40 GP container ; main machine naked and fastened with iron wire in the container. |
| (2) |
All Components Fixed by steel wire with Container. |
| (3) |
electrics devices be packed with wooden box.for Standard export packing |
| (4) |
rollers were painted with oil and packed with plastic film. |
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
After-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
