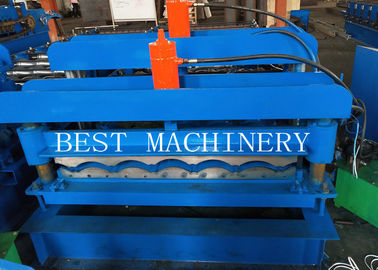

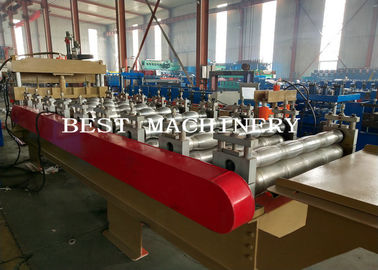

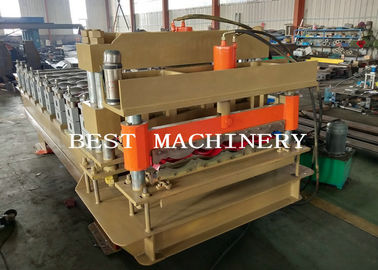

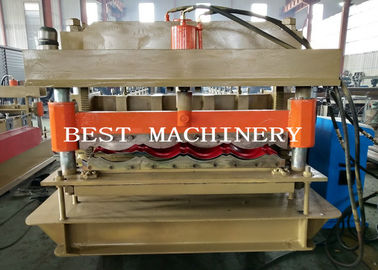

PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material

PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material
PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material

Large Image :  PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material

Product Details:
Place of Origin: China,Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35days
Supply Ability: 15sets/month

PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material

Description
Name: Trapezoidal Roof Tile Metal Making Roll Forming Machine PLC Control 380V Cutting Type: Hydraulic
Thickness: 0.3-0.8mm Color: As Your Require
Material: PPGI/GI Warranty: 2 Year
High Light:

roof panel roll forming machine

,

steel roof tile forming machine

Trapezoidal Roof Tile Metal Making Roll Forming Machine PLC Control 380V





Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

NO. of roller Stations: 11roller stations
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 3kw

Driven type: 1.0"Chain

Diameter of shaft: 70mm

Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°



Pressing And Cutting Device

Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type:Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3kW

Press tool material: Cr 12 steel after heat-treated



Control System

Type

PLC Frequency Control System with touch screen

PLC Brand

Delta

Encoder Brand

Omron

Length Error

±2mm

Language

English and Chinese

Voltage

380v/50HZ, 3Phase



Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand



Output Table

No power type
Length: 2m







Work Flow

Decoiler--------feeding--------roll forming--------pressing and cut to length-----output table

PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material 0



Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.

3. electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.

PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material 1



PLC Control 380V Roof Tile Roll Forming Machine 380v / 50HZ PPGI / GI Material 2
