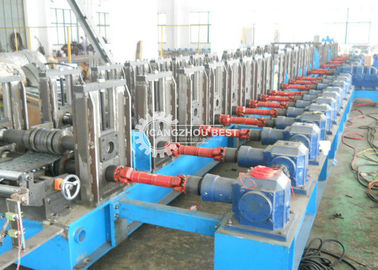

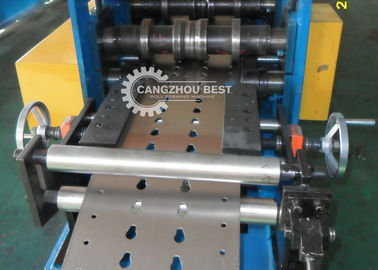

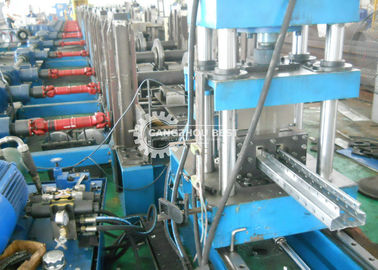

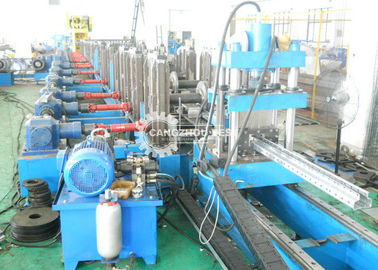

Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket

Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket
Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket

Large Image :  Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD21500-USD25500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 30-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month

Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket

Description
Name: Storage Rack Upright Shelf Frame Profile Roll Forming Machine For Supermarket Control System: Delta PLC
Feature: Fully Automatic Operation Usage: Warehouse Storage Rack
Color: Customized Place Of Origin: Hebei, China
Cutting Mode: Hydraulic Type Drive System: Gear Box
Voltage: 380V/50HZ 3Phase Cutting System: Automatic Hydyaulic Cutting
High Light:

sheet metal roll forming machines

,

steel roll forming machine

Storage Rack Upright Shelf Frame Profile Roll Forming Machine For Supermarket







1. Main features

The structure is simple and the appearance of the steel rack upright roll forming machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine. The size can be adjusted, all products can be customized according to the requirements of the client.



2. Working flow

Decoiler --- Servo Feeding --- Punching--- Levelling--- Roll Forming ---- Cutting ---- Run out table





3. Technical parameters



1. Steel Sheet Thickness: 1.5-2.0mm (depend on requirement )

2. Hydraulic power: 7.5Kw

3. Transmission way: Gear Box

4. Capacity of Decoiler: 5 Ton hydraulic decoiler

5. Forming Speed: 10-15m/min

6. Roller Groups: About 20 stations main roller

7. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

8. Roller Diameter: 100mm

9. Principal Axis: 45# high grade steel with quenching treatment

10. Main Motor Power: 22 Kw

Item Parameters
  According to buyer's requirements
Model Type PPGI, PI, CR , Steel Coil, or equivalent
Thickness(mm) 1.5-3 mm
Yield strength(Mpa) 345
Forming speed(m/min) 0-25
Punching Press 80 Tons
Roller Stations About 17 stations
According to the final design
Roller material GCR15 steel, coated with chrome
Roller driven type Chain transmission
Control System PLC (Panasonic) as list in the note
Operation type Touch screen + button
Hydraulic system pressure( MPa ) 25
Hydraulic motor power ( KW ) 5.5
Main motor power(KW) 22
Shaft Material and DIA 80 mm, material is 45 # forge steel
Cutting Way Tracking hydraulic mould cutting
Electric Source 380V, 50HZ,3 phase
According to customer’s require
Way Of Drive Chain transmission
Dimension(L*W*H) Forming Section about 9m*0.8m*1.2m



4. Machine components

Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set
Punching system 1 set
Roll Forming system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set



5. Training and Installation
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 18 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.



Application:

Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket 0

Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket 1

Storage Upright Shelf Frame Profile Rack Roll Forming Machine For Supermarket 2
