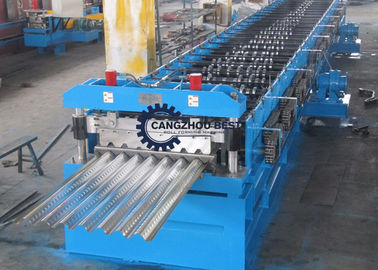

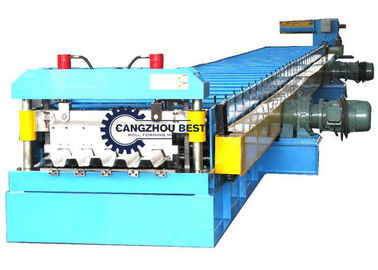

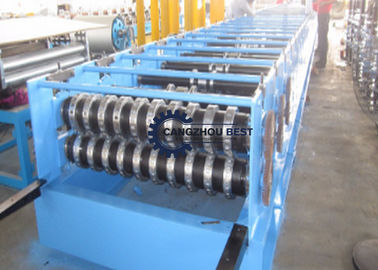

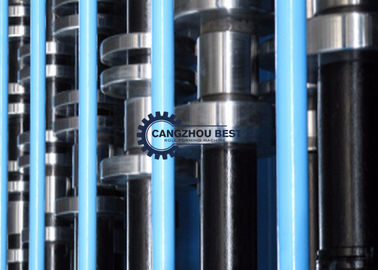

Steel Structure Metal Floor Deck Roll Forming Machine For Building Material

Steel Structure Metal Floor Deck Roll Forming Machine For Building Material
Steel Structure Metal Floor Deck Roll Forming Machine For Building Material Steel Structure Metal Floor Deck Roll Forming Machine For Building Material Steel Structure Metal Floor Deck Roll Forming Machine For Building Material Steel Structure Metal Floor Deck Roll Forming Machine For Building Material

Large Image :  Steel Structure Metal Floor Deck Roll Forming Machine For Building Material

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-750
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD25500-35500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Steel Structure Metal Floor Deck Roll Forming Machine For Building Material

Description
Name: Steel Structure Metal Floor Deck Sheet Roll Forming Machine For Building Material Condition: New
Voltage: 380V 50Hz 3phases Panel Thickness: 20mm
Control System: PLC Box Place Of Orgin:: Hebei,China
Roller Material: Cr12 Weight: 11t
Usage: Building Tile Type: Galvanized
High Light:

panel roll forming machine

,

cold roll forming machine

Steel Structure Metal Floor Deck Sheet Roll Forming Machine For Building Material



1. Main Features

1) Material of the profile: GI or color steel
2) Thickness range: 0.3-0.8mm
3) Main motor power: 7.5kw, AC motor, motor inside of main machine (Brand: Guomao of China) (according the final design)
4) Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
5) Roll station: about 18 stations (according the final design)
6) Roller material: ASTM1045 chrome plated surface with chrome,CNC,
7) Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
8) Machine roll forming speed: not less than 15m/min
9) Transmission: by chain, one inch, single line
10) Roll former has leveling bolts in the base for adjust the leveling
11) Machine base frame adopt H beam welding steel
12) In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
13) Machine adopt new station to make machine more strong
14) To avoid accidents,all of drive part adopt protect cover
15) Color of machine: Blue and yellow (or base on customer request)



2. Machine Details:

Manual decoiler:

Dimensions: 1700mm*1000mm*800mm

Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 480-570mm
Maximal out diameter: 1500mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual



Forming section

Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Feeding type: adjustable
Feeding width:900-1300mmmm
Entrance and guide roller: diameter is ¢76mm, material is SAE1045,surface with chrome



Cutting :

Cutting after forming: Cut the sheet after roll forming to required length.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,4KW
Working pressure: 12Mpa adjustable

Length measuring: Automatic encoder length measuring, Brand: Omron
The cutting sequence is also contained and controlled by the same PLC program



out table:

Jointed by 60mm*40mm tube
Size: 1.0m long*0.8mwide*0.6-1mhigh
One out table with two support roller
Two sets.



Hydraulic station:

Hydraulic power: 4kW
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)



Control carbinet:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview

3. Specification of the raw material

No
1 Suitable material galvanized coil,
2

Width of the raw material/

feeding width

1000mm or customized
3 cover width/ effective width 688mm or customized
4 Thickness 0.5-1.2mm or customized





4. Our Service:

Payment terms 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery within 30 working days after receipt of deposit.
Packing Nude packing with 1*40GPcontainer
Warranty One year, and we will provide the technical support for the whole life.
Installation

1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)





5. Company Information:

Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
