Product Details:
|
| Product Name: | Steel Downspout/Downpipe/Gutter Profile/Tube Cold Making Roll Forming Machine | Warranty: | 2 Years |
|---|---|---|---|
| Material Thickness: | 0.3-0.8mm | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| High Light: | downpipe roll forming machine,pipe roll forming machine |
||

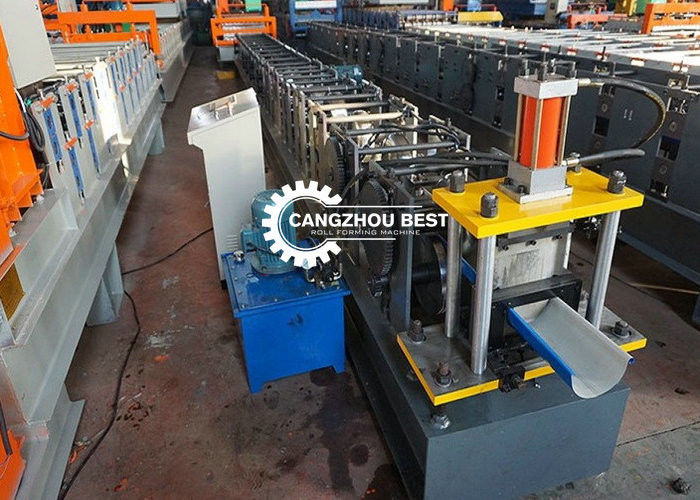

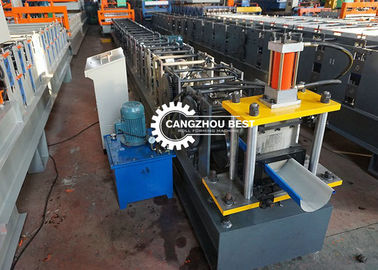

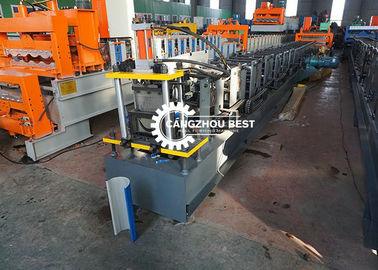

Steel Downspout/Downpipe/Gutter Profile/Tube Cold Making Roll Forming Machine

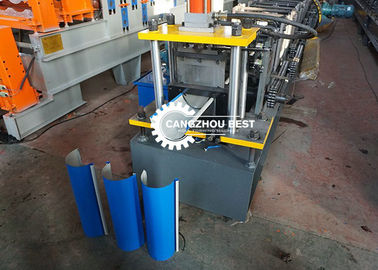

The gutters made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in roof downpipe system , rainwater gutter etc .
(2). Working Flow
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
Technical Detail
|
1
|
Coil Type
|
PPGI GI
|
|
2
|
Width
|
500mm
|
|
3
|
Thickness
|
0.3-0.8mm
|
|
4
|
Yield stress
|
Q235
|
|
5
|
Effective
|
410mm
|
B Components Details
|
Roller Material
|
High grade 45# steel. Hard chrome plating, 0.05mm.
|
|
Main Frame
|
350#steel.More stable and no shaking
|
|
Middle Plate
|
16mm. We use thicker plates to ensure stability of our products.
|
|
Forming Steps
|
15, according to the drawing.
|
|
|
Φ70 mm, high grade 45# steel.
|
|
Treating process: tempering- finish turning,
high rigidity, hard to deform. |
|
|
|
Cr12, hardness HRC60-62.
|
|
Treating process: heat treatment- plane abrasion- wire electrode cutting.
|
C. Electric Components
|
Suitable Power
|
380V, 50 Hz, 3 phase or according to your need.
|
|
Screen
|
7 inch touch screen, easy to operate.
|
|
|
Delta DVP 14ES
|
|
well-adapted to various conditions, such as moisture,
electromagnetic disturbance. |
|
|
Frequency Converter
|
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
|
|
Length
Measurement Device |
Omron, made in Japan.
|
|
It features with high accuracy and stability.
|
Our Service
Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
1. As the factory, we will recommend the right profile machine to customer, and give the professional advice.
2. Confirm the final decision during the discussion.
3. The sale person will give customer updates for each period during the production process.
4. We finish the machine within the confirmed date, and shipping the goods to cutomers safely and faster.
5. Provide the right documents to customers.
6. Give the tips(include photos, videos and manual) for installation and operation.
7. If the buyer can not make the installation or machine appeared the problems, we will creat a group first with our technician and customer. To solve it in a short time.
8. If can not solve online, we will arrange the technician solve it overseas within one week. The charge for technician include the visa, round tickers, food, accomdation and USD100/person/day for salary.
The advantage of my factory:
We have a team of skilled engineers and one group for after-sale service.
The customer can find us in China or aboard.
We go aboard 2-3 times each year to participate exhibition and visit customers.
