Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame

Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame
Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame

Large Image :  Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15,000/ SET
Packaging Details: plastic film for naked machine
Delivery Time: 50-60 days
Supply Ability: 5sets/ month

Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame

Description
Product Name: Supermarket Storage Rack Upright Shelf Frame Profile Roll Forming Machine Material Thickness: 1-2.5mm
Driven System: Chain Or Gear Box Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
Color: As Customer's Request Power: 7.5kw
High Light:

sheet metal roll forming machines

,

steel roll forming machine

Supermarket Storage Rack Upright Shelf Frame Profile Roll Forming Machine


Box beams are made from two identical channel sections nested together to form a box, Box beam is the most widely used beam, as the structure is the most strong compare with other type of beam.Box beam roll forming line is the essential for its production.





Machine components list:

Name NO. Unit
1. De-coiler 1 set
2. feeding pre-cutting 1 set
3. Forming machine 1 set
4. Cutting device 1 set
5. PLC control box 1 set
6. Hydraulic pump station 1 set
7. Production support table 1 set



Decoiler


Inner Diameter: Φ500 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 5000 kg

Type: hydraulic
Power:7.5kw
Control system: PLC



roll forming machine

Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 1-2mm
Rollers: 22Groups
Material for Rollers: GCr15 steel after treatment


Hardness for Heat Treatment: HRC55 – 60
Frame panel thickness: 20mm
Bottom frame: 350 H-section steel
Motor Power:11 kw x2

Driven type: double sides double row 1.5"Chain



PLC

Type: PLC Frequency Control System with double touch screen
PLC Brand: FATEK
Encoder Brand: Omron
Length Error: ±2mm
Language: Chinese and English
Voltage:380v 50hz 3phases(as customer requirement)

Hydraulic pump

(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

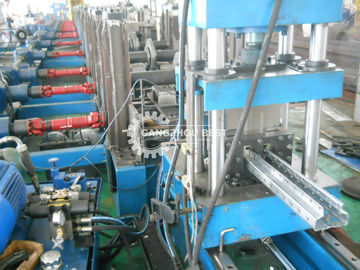

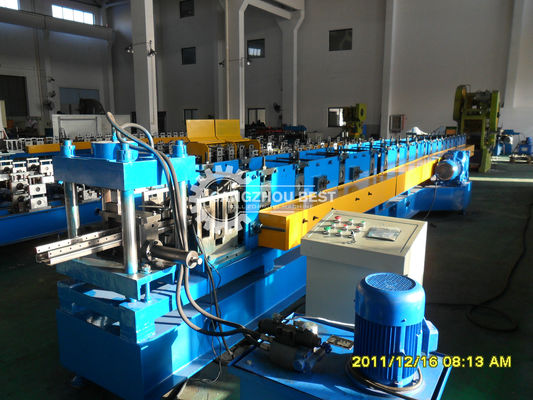

Machine Photos

Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame 0



Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame 1



Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame 2








Our service



Re-sale Service :
1. Send you invitation letter, if you wanna visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by whatsapp or Telephone.

Packing & Loading Photos


WHY CHOOSE AOFA COMPANY
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

Our factory

Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame 3


Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame 4



Supermarket Storage Rack Profile Roll Forming Machine in Upright Shelf Frame 5
