Product Details:
|
| Name: | Steel Plate Decking Floor Sheet Roll Forming Machine For Building Construction | Warranty: | 18 Month |
|---|---|---|---|
| Voltage: | 380v | Production Capacity: | 6-8m/min |
| Roller Material: | GCr15 Steel | Place Of Orgin:: | Hebei,China |
| Power: | 30kw | Weight: | 11t |
| Motor Brand: | Simens | Cutting Blade: | Cr12Mov With Quenched Treatment |
| High Light: | panel roll forming machine,cold roll forming machine |
||
Steel Plate Decking Floor Sheet Roll Forming Machine For Building Construction
Features of Deck Floor Roll Forming Machine:
The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly. We can also supply the customized machines.
Applications of Deck Floor Roll Forming Machine:
The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.
Process Flow of Deck Floor Roll Forming Machine:
Uncoiler -Feeding -Straightening-Roll Forming -Cutting-Exit Rack
Machine Parameters
| No | Item | Parameter |
| 01 | Material feeding width | 925~1250mm |
| 02 | Material thickness | 0.8~1.3mm |
| 03 | Uncoiler | Manual Uncoiler |
| 04 | Loading weight | 5ton |
| 05 | Forming speed | 8-15m/min |
| 06 | Forming Steps | 26~35 stations |
| 07 | Shafts materials | 45# high quality steel |
| 08 | Shafts diameter | 76mm |
| 09 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 2x11kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 4kw |
| 14 | This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| 15 | Length cut Accuracy | ±1mm |
| 16 | PLC control system | Omron Japan |
| 17 | Frequency converter | TAIAN |
| 18 | Screen | TouchWin |
| 19 | Voltage | 380V/50HZ/3Phase |
| 20 | Total weight | Approx 15t |
| 21 | Overall dimensions | 15600x1500x1300mm |
Machine components list:
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
- High Standard cassette type galvanized steel decking floor roll forming machine with embossing is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology,
- and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Product Application
The floor deck tile making machine can form the flat sheet into a customized shape, the material of floor deck sheet is galvanized steel.
Our Service:
- Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
- Reply within 24 hours
- Provide relevant product information
- Answer questions if request
- Give technical suggestion
² Provide After-sales service 24hr × 7days per week
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance
.

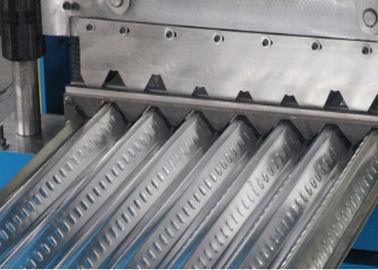

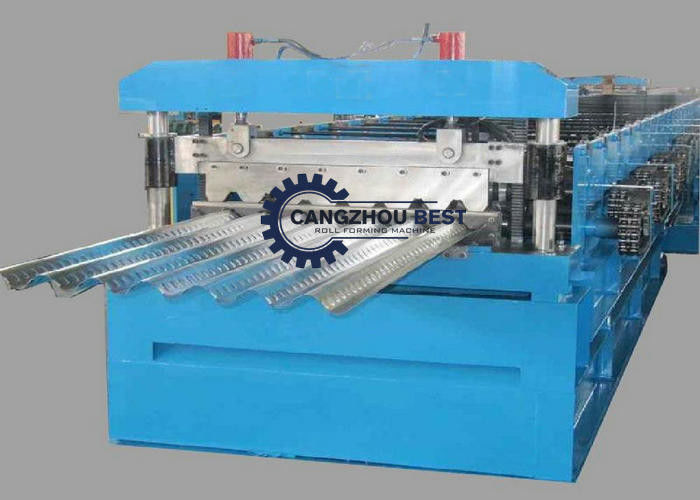

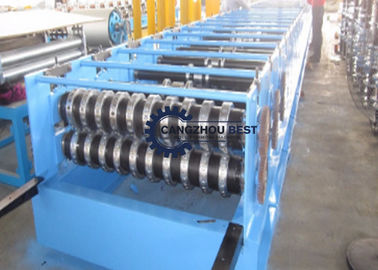

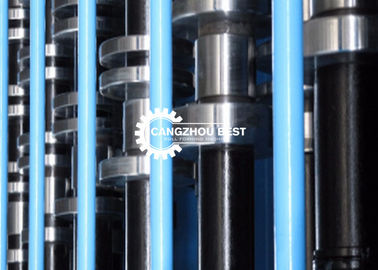

Photos for reference:
